$33.95
In Stock
Suitable for all YZ and YZF dirt bikes
Pay Less, Receive More
One Stop Shop for Custom Builds

More info.

Make 4 payments of $8.49 over 8 weeks and get it now!



Sold As Complete Set

Calculate Shipping

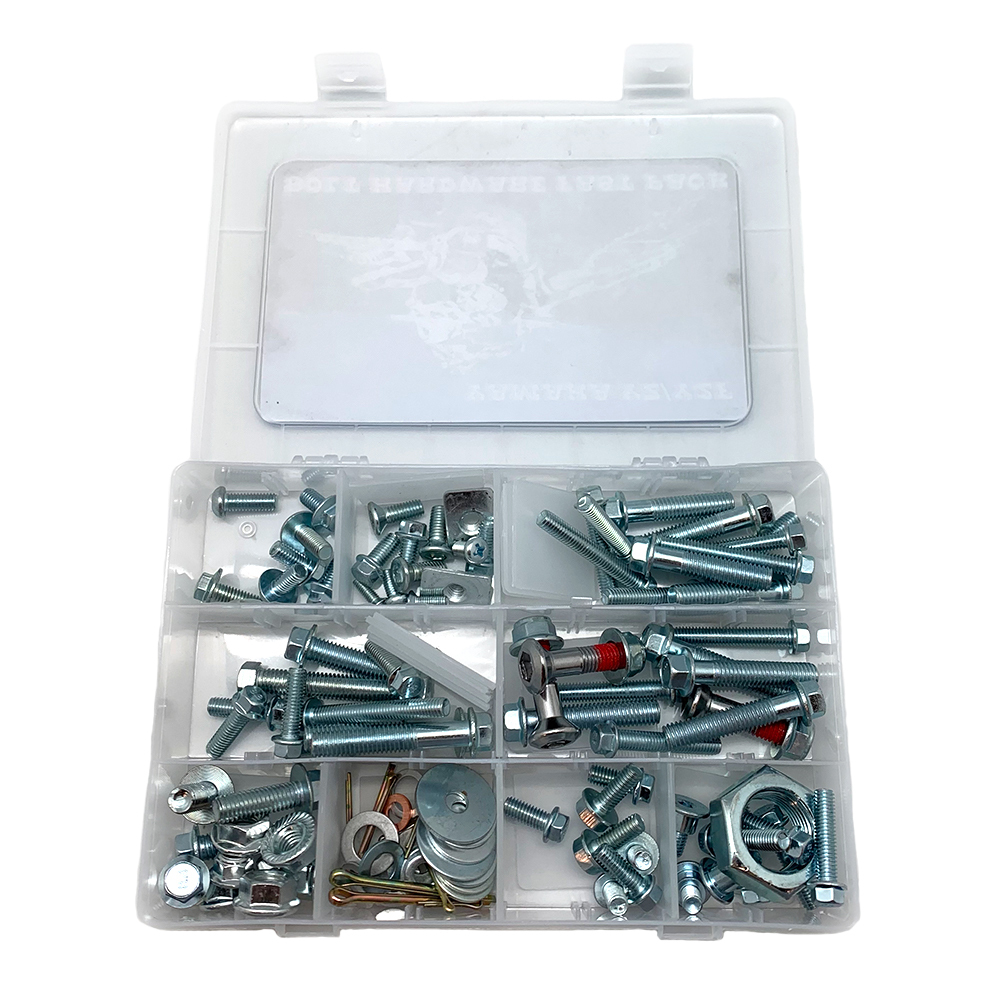

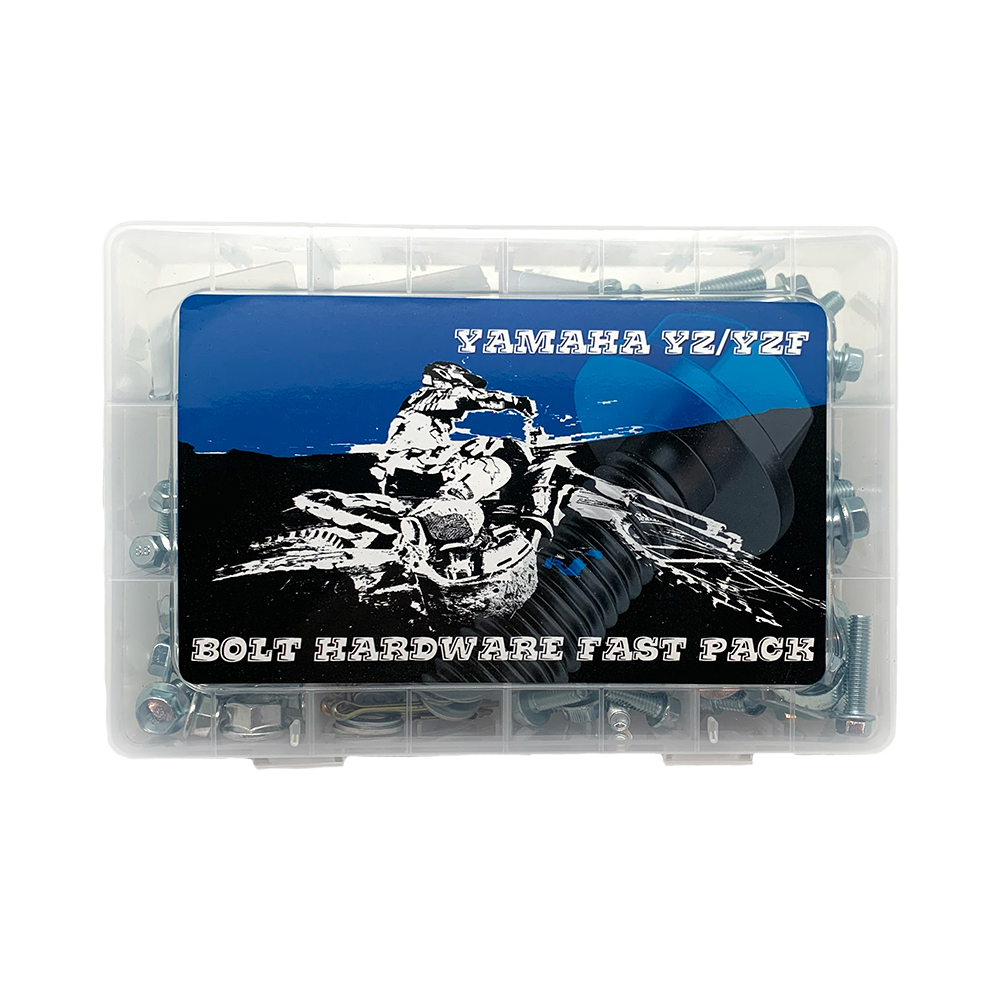

110 piece Yamaha factory sized body and plastics bolt kit. Suitable for all YZ and YZF dirt bikes.

Features:

  • 110 piece kit suits YZ and YZF Yamaha bikes
  • Complete in plastic carrier case

Contents:

  • Shoulder Fork Guard Bolt M6 x 3
  • Radiator Shroud Bolt
    • M6*12 x 4
    • M6*16 x 2
  • Front Rotor Bolt M6 x 3
  • Rear Rotor Bolt M6 x 3
  • T-nut M6 x 2
  • Flange Hex Bolt/M8
    • M8*45  hex 10mm x 2
    • M8*40  hex 10mm x 4
    • M8*35  hex 10mm x 4
    • M8*30  hex 10mm
    • M8*25  hex 10mm x 2
    • M8*16  hex 10mm x 2
  • Flange Hex Bolt/M6
    • M6*45 hex 8mm
    • M6*40 hex 8mm x 2
    • M6*35 hex 8mm x 3
    • M6*30 hex 8mm x 5
    • M6*25 hex 8mm x 5
    • M6*20 hex 8mm x 5
    • M6*16 hex 8mm x 2
    • M6*14 hex 8mm x 2
    • M6*12 hex 8mm x 3
    • M6*20 hex 10mm GB5789
  • Phillips Pan Screw
    • M5*10 x 2
    • M6*22
  • Phillips Flush Mount Screw M4*12 x 2
  • Button Head Bolt/7380
    • M8*25 x 2
    • M6*16
  • Flush Mount Bolt/ DIN7991 M8*45
  • Allen Head Bolt/GB70 M6*25
  • Sprocket Bolt M8*25 x 3
  • Locking Sprocket Nut M8 x 3
  • Chain Adjuster Bolt M8*50 hex 10mm
  • Chain Adjuster Nut M8
  • Fuji Nut
    • M10-1.25 pitch
    • M8
    • M6 x 2
  • Flange Nut
    • M10 x 2
    • M8 x 2
  • Locking Axel Nut
    • M20
    • M22
    • M25
  • Fender Washer
    • M8*25
    • M6*25
    • M6*22 x 3
    • M6*20 x 3
    • M6*16
  • Flat Washer
    • M8*17 x 2
    • M6*12
  • "Banjo Bolt" Aluminum Compression Washer M10 x 2
  • Aluminum Compression Washer
    • M10*18
    • M8*15
  • Copper Compression Washer M6*11
  • O-ring
    • Large
    • Small
  • Aluminium bushing Y1004 M10
  • Aluminum Collar Washer M6
  • Aluminum 26mm Oval Bushing Y1001
  • Aluminum 22mm Oval Bushing Y1002
  • Aluminum Rim-Lock Spacer M8
  • Black Plastic Valve Cap
  • Black Valve Stem Grommet
  • Metal Screwdriver Valve Cap
  • Cotter Pin
    • 2.5*25 x 2
    • 2.5*15 x 2
    • 2.0*25 x 2
    • 2.0*20 x 2
    • 2.0*12 x 2
    • 3.2*40 x 2

(BK5049)

SKU BK5049
Brand Third Gear
Shipping Weight 0.9000kg
