$34.00
In Stock
Suitable for SX, EX and EXC KTM motorbikes

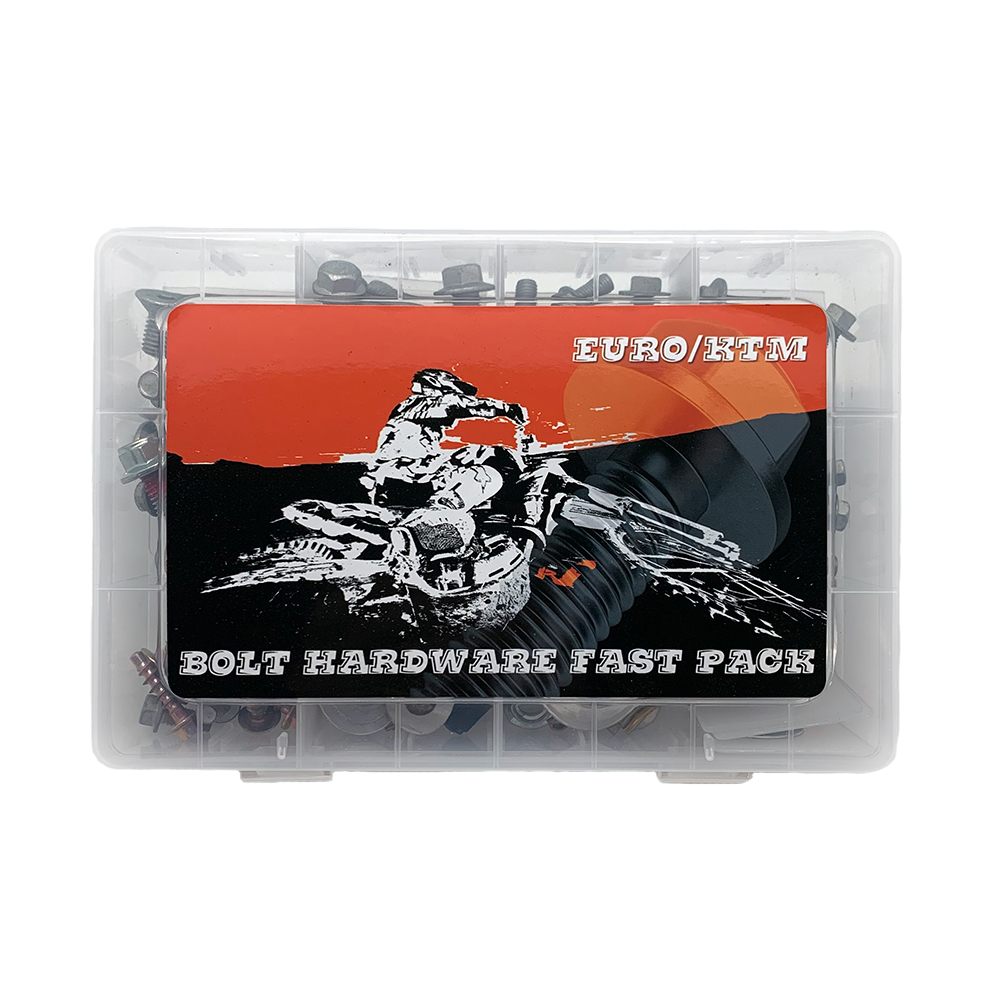

Complete in plastic carrier case
One Stop Shop for Custom Builds

More info.

Make 4 payments of $8.50 over 8 weeks and get it now!



Sold As Complete Set

Calculate Shipping

110 Piece KTM factory size bodywork and plastics hardware bolt kit. Suitable for SX, EX and EXC KTM motorbikes.

Features:

  • 80 piece kit to suit KTM SX, EX and EXC dirt bikes
  • Complete in plastic carrier case

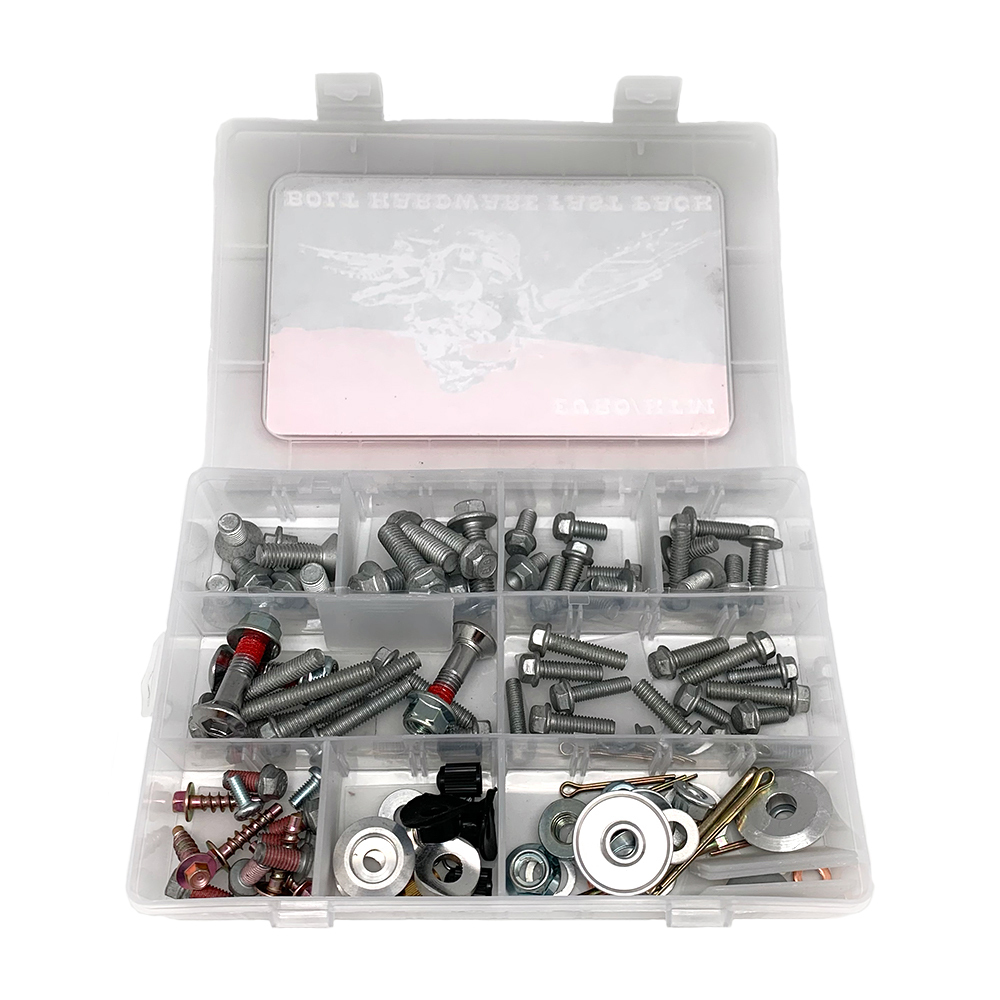

Contents:

  • M8 Sub-Frame Bolt
    • M8x20 x 2
    • M8x25 x 2
  • Euro Style Shoulder Bolt/Fork Guard Bolt M6-1.0 pitch
    • M6*12 hex 8mm x 3
  • Euro Style Hex Flange Bolt
    • M8*30  hex 10mm x 3
    • M8*25  hex 10mm x 3
    • M6*50 hex 8mm
    • M6*45 hex 8mm
    • M6*40 hex 8mm  x 2
    • M6*30 hex 8mm  x 3
    • M6*25 hex 8mm x 4
    • M6*20 hex 8mm  x 4
    • M6*16 hex 8mm  x 2
    • M6*12 hex 8mm  x 3
  • Large Flange Hex Bolt/M6
    • M6*20 hex 8mm x 3
    • M6*15 hex 8mm x 3
    • M6*12 hex 8mm
    • M6*10 hex 8mm x 3
  • Euro Style Flange Bolt/GB5789 M5-0.8 pitch
    • M5*20 hex 8mm x 2
    • M5*16 hex 8mm x 2
    • M5*12 hex 8mm x 2
  • Rotor Bolt x 6
  • Phillips Pan Screw/GB818
    • M5*10 x 2
    • M6*22
  • Carb Bowl Screw/GB70 M4*12
  • Phillips Flush Mount Screw M4*12
  • Hex Shroud Screw M6*20 x 5
  • Button Head Bolt/7380/black/8.8 M8*25
  • Flush Mount Bolt/ DIN7991 M8*45
  • Allen Head Bolt/GB70 /black/8.8 M6*25
  • Sprocket Bolt M8*30 x 3
  • Fuji Nut
    • M8 x 5
    • M6
  • Flange Hex Nut/GB6177 M6
  • Split Washer M4
  • B clips x 3
  • Cotter Pin
    • 3.2*40 x 3
    • 2.5*25 x 3
    • 2.0*20 x 3
    • 2.0*12
  • Fender Washer
    • M6*20 x 2
    • M6*16 x 2
  • Rim Lock Bushing #1 x 2
  • Notched Collar Washer  x 2
  • Recessed collar wahser
    • M6 (I.D. 6mm x 20mm x 7.7mm)
    • M6 (I.D. 6mm x 22mm x 8.35mm)
  • Pipe Mount Washer
    • M8 (I.D. 8.3mm x 28mm x 5.5mm)
    • M7 (I.D. 7mm x 28mm x 7.6mm)
  • Convex washer #6 x 2
  • Black Plastic Valve Cap x 2
  • Black Valve Stem Grommet x 2
  • Metal Screwdriver Valve Stem Cap
  • Aluminum Compression Washer M12*20 x 2
  • "Banjo Bolt" Aluminum Compression Washer M10 x 2
  • Aluminum Compression Washer M8*15 x 2
  • Copper Compression Washer M6*11 x 2

(BK5039)

SKU BK5039
Barcode # 9356398014725
Brand Third Gear
Shipping Weight 0.7000kg
