55PC Honda CRF250R Body & Plastics Bolt Kit

55 piece Honda factory size body and plastics hardware bolt kit. Suitable CRF250R 2006-2009 models.

Features:

• Bolt kit for CRF250R '06-'09

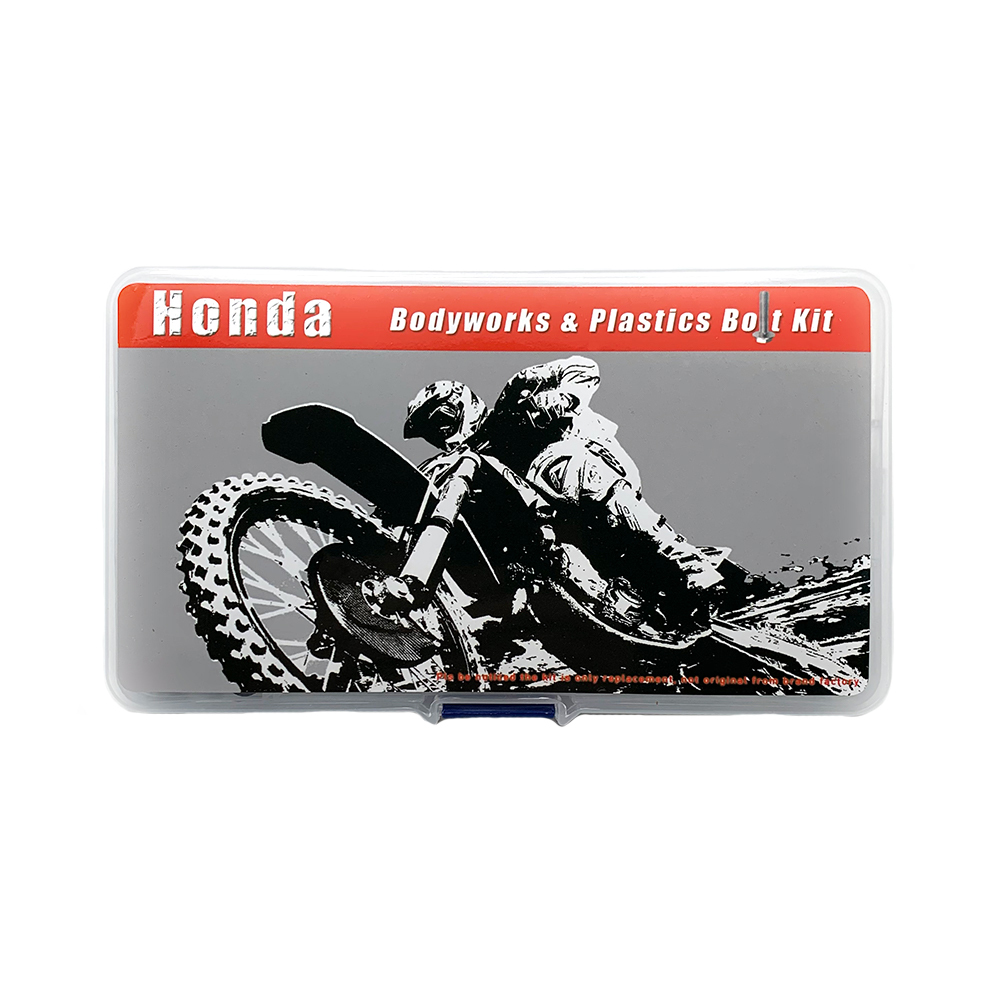

• Complete in plastic carrier case

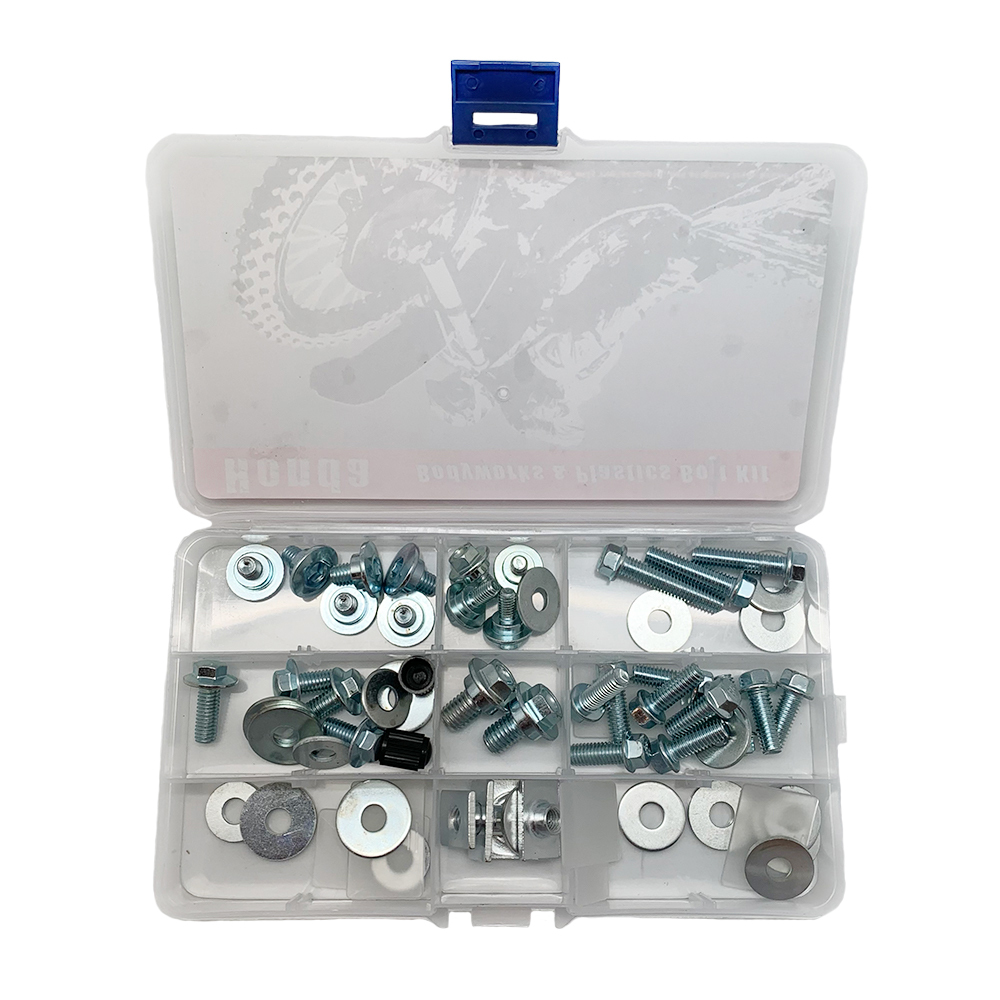

Contents:

• Shoulder Fork Guard Bolt M6*12 x 6
• Radiator Shroud Bolt M5*12 x 4
• Sub-Frame Bolt M10*24
• Seat Bolt
  • M8*16 x 2
  • M8*22
• Rotor Bolt M6
• T-nut M6 x 2
• Flange Hex Bolt/M8
  • M8*45  hex 10mm
  • M8*40  hex 10mm
  • M8*35  hex 10mm
  • M8*30  hex 10mm
  • M8*25  hex 10mm
  • M8*20  hex 10mm
  • M8*16  hex 10mm
• Flange Hex Bolt/M6
  • M6*45 hex 8mm
  • M6*40 hex 8mm
  • M6*35 hex 8mm
  • M6*30 hex 8mm
  • M6*25 hex 8mm x 2
  • M6*20 hex 8mm
  • M6*18 hex 8mm
  • M6*16 hex 8mm x 10
  • M6*14 hex 8mm
  • M6*12 hex 8mm
  • M6*10 hex 8mm
• Flange Hex Bolt/M5 M5*12 hex 8mm
• Number Plate Bolt
  • M6*12 x 2
  • M6*16 x 2
• Phillips Pan Screw/GB818
  • M5*10
  • M6*22
• Phillips Flush Mount Screw M4*12
• Button Head Bolt/7380/black/8.8 M8*25
• Flush Mount Bolt/ DIN7991 M8*45
• Allen Head Bolt/GB70 /black/8.8 M6*25
• M8 Sprocket Bolt M8*25
• Locking Sprocket Nut M8
• Chain Adjuster Bolt M8*50 hex 10mm
• Chain Adjuster Nut M8
• Fuji Nut/ 1.25 pitch
  • M10 hex 14mm
  • M8 hex 12mm
• Fuji Nut / 1.00 pitch
  • M6 hex 10mm
• Flange Nut
  • M8
  • M6
• Locking Axel Nut
  • M25
  • M20
• Flat Washer M8*17
• Fender Washer
  • M8*25
  • M6*25
  • M6*20 x 5
  • M6*18 x 12
  • M6*16 x 5
• "Banjo Bolt" Aluminum Compression Washer M10
• Aluminum Compression Washer M8*15
• Copper Compression Washer M6*11
• O-ring #23-015
• Large Aluminum Collar Washer M6
• Aluminum Collar Washer M6
• Aluminum Fender Washer M6
• Aluminum Rim-Lock Spacer M8
• Black Plastic Valve Cap
• Black Valve Stem Grommet
• Metal Screwdriver Valve Cap
• Cotter Pin
  • 2.5*25
  • 2.5*15
  • 2.0*15
  • 2.0*12
