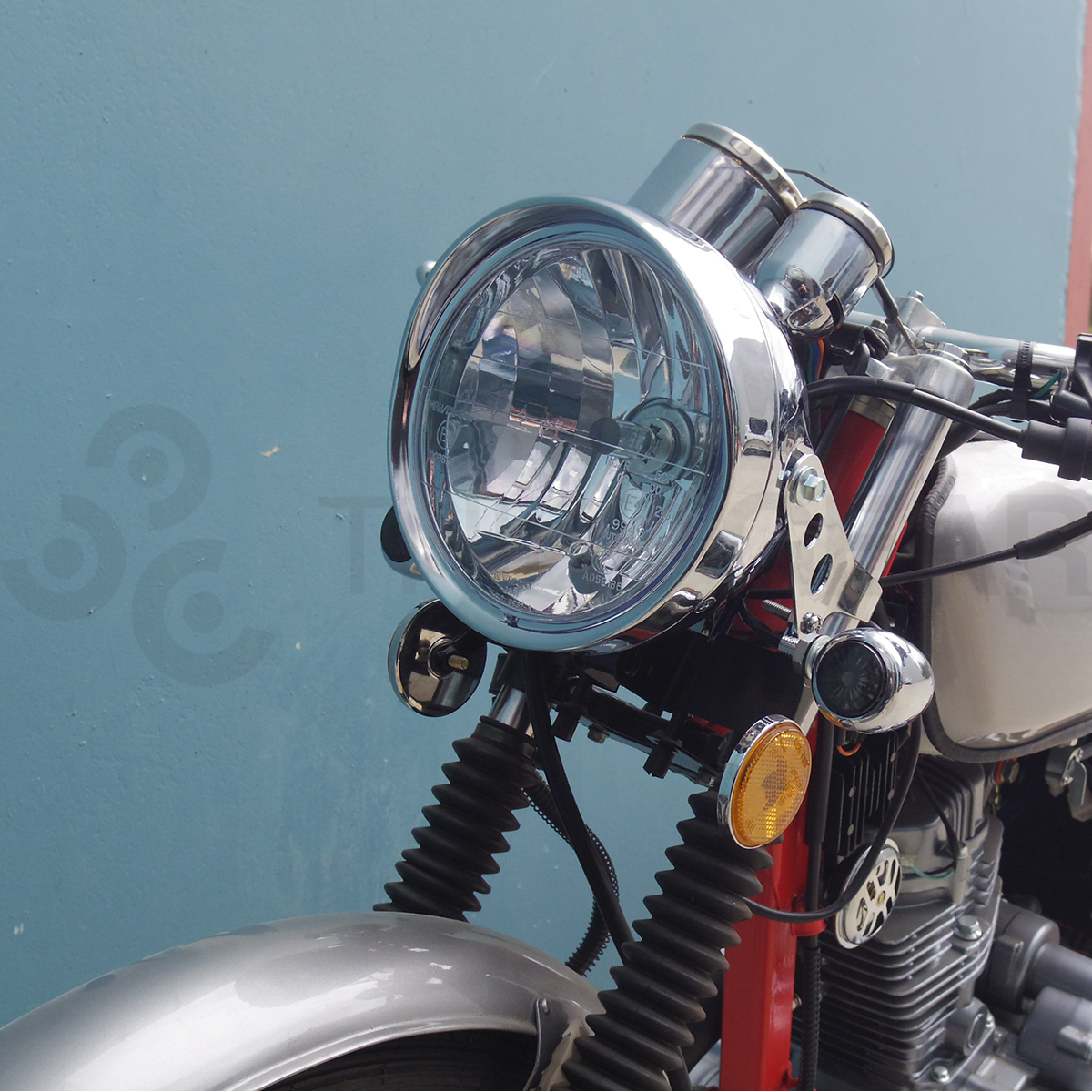

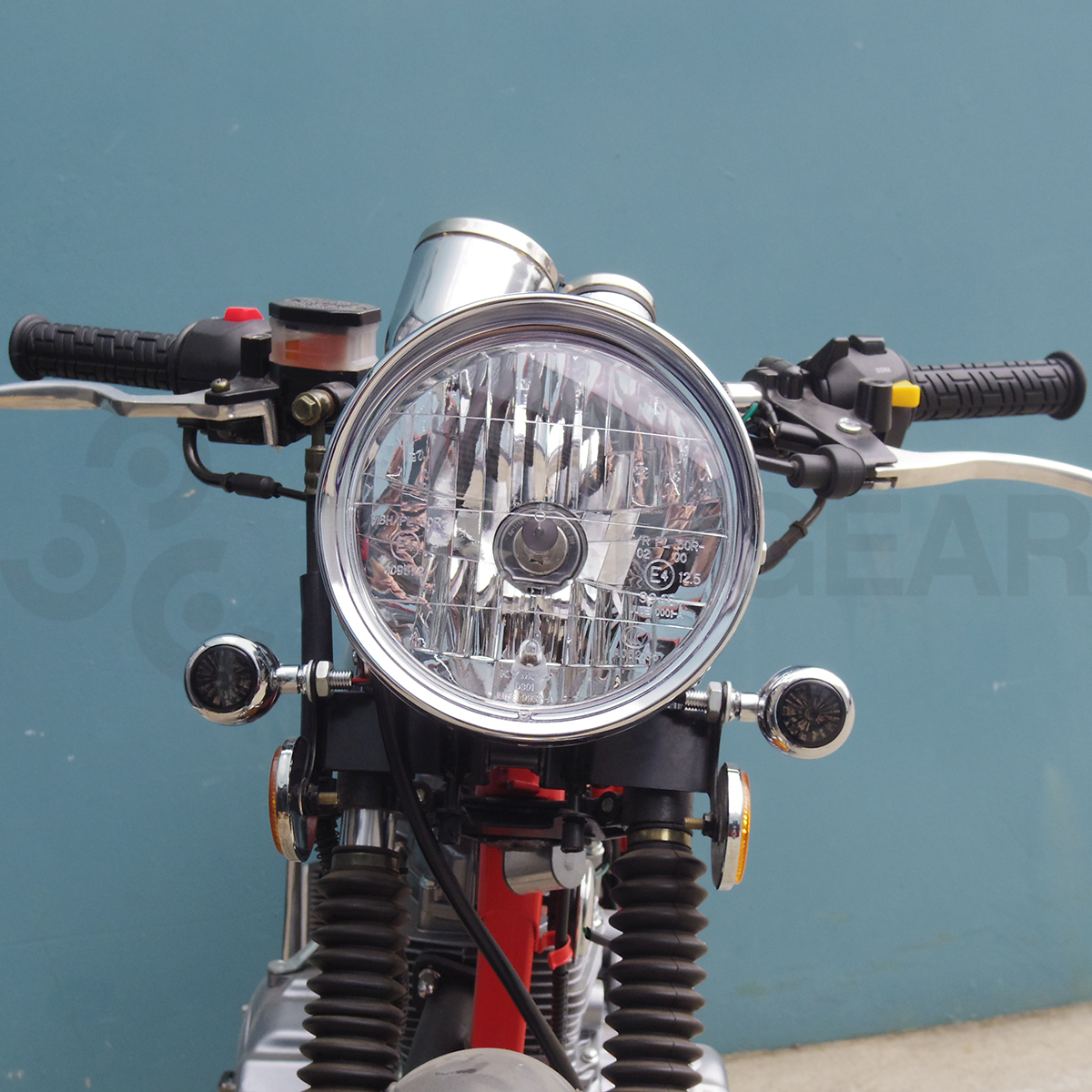

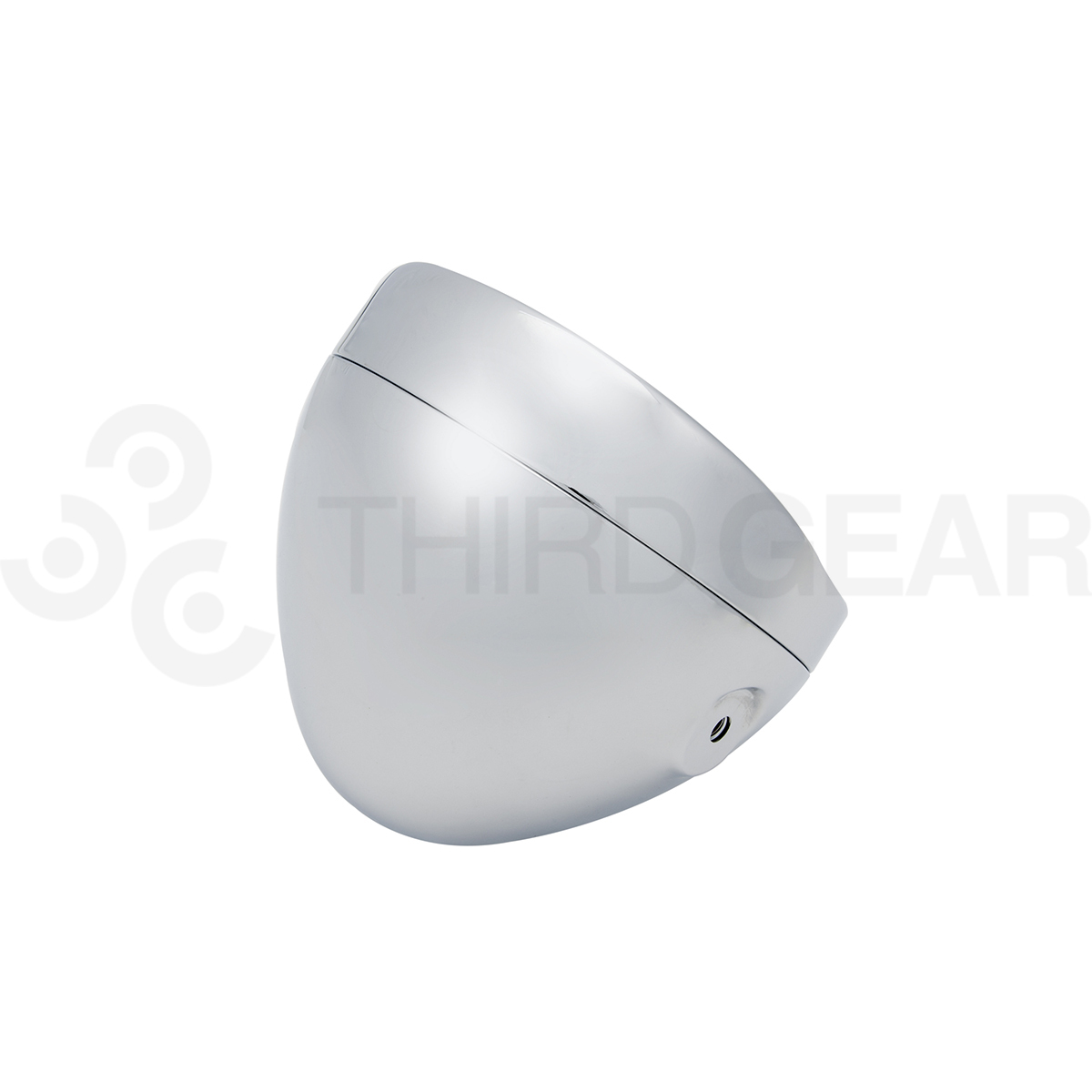

Chrome 7" Motorcycle Headlight With Visor
|Sold As||Single Unit|
|Mirror Lens Type||N/A|
Chrome 7" motorcycle headlight with built in visor. Includes a 60/55W H4 headlight bulb and sidelight. Complete aluminium metal housing with a polished chrome finish. E marked and ADR approved for legal road use in Australia.
- Solid metal body with chrome finish

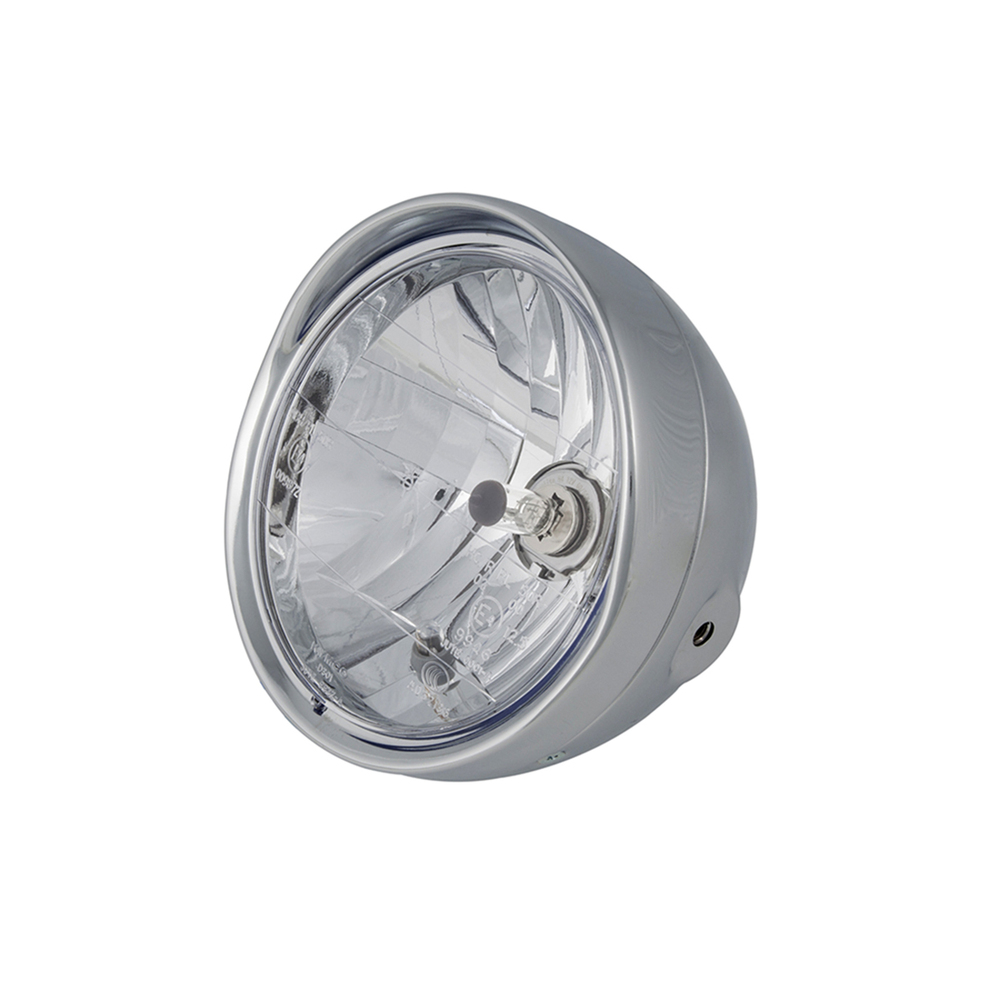

- H4 60/55W headlight bulb and sidelight
- Wiring attached to the headlight ready to go with bulb installed

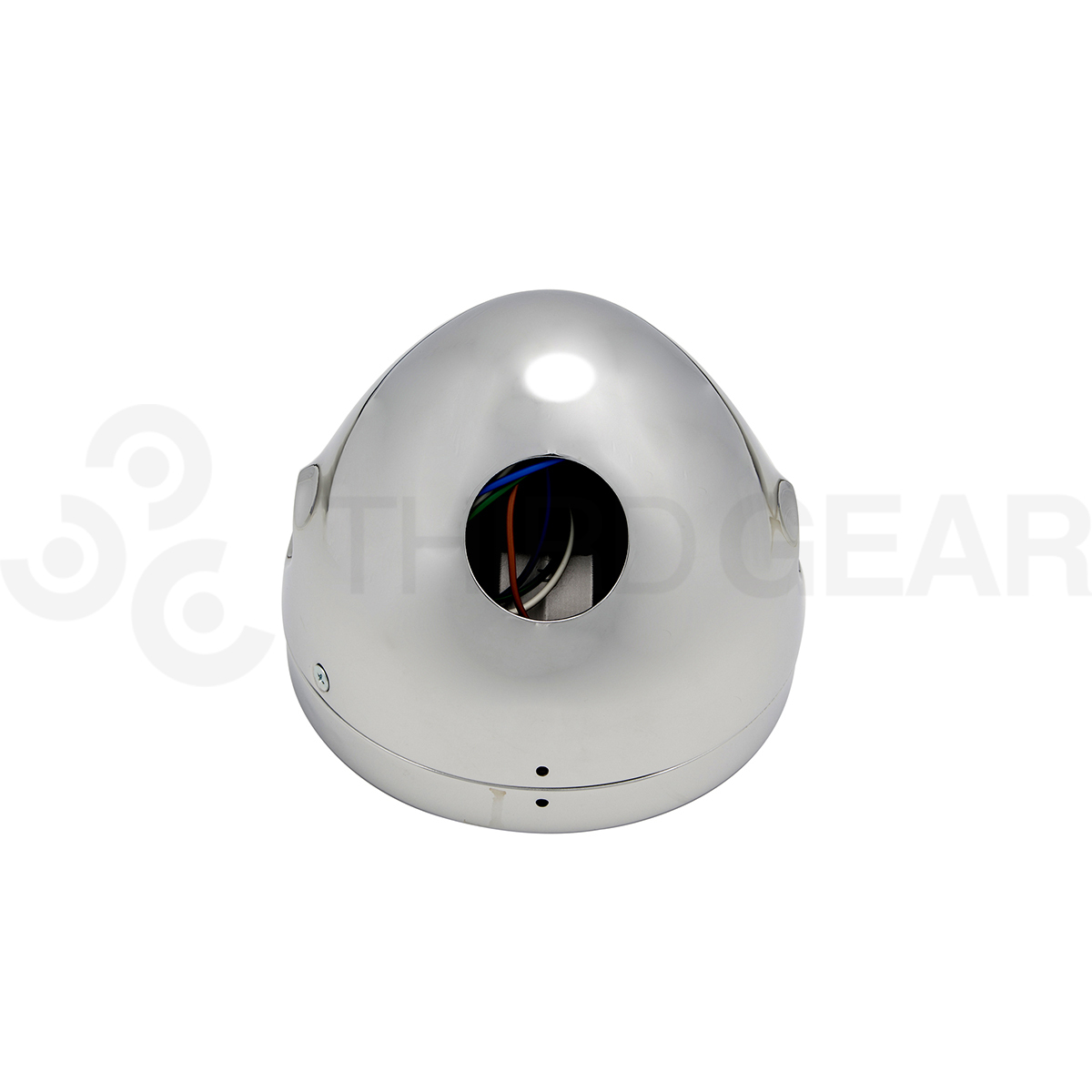

- Cut out on the back of the bezel with thread sided mounting points

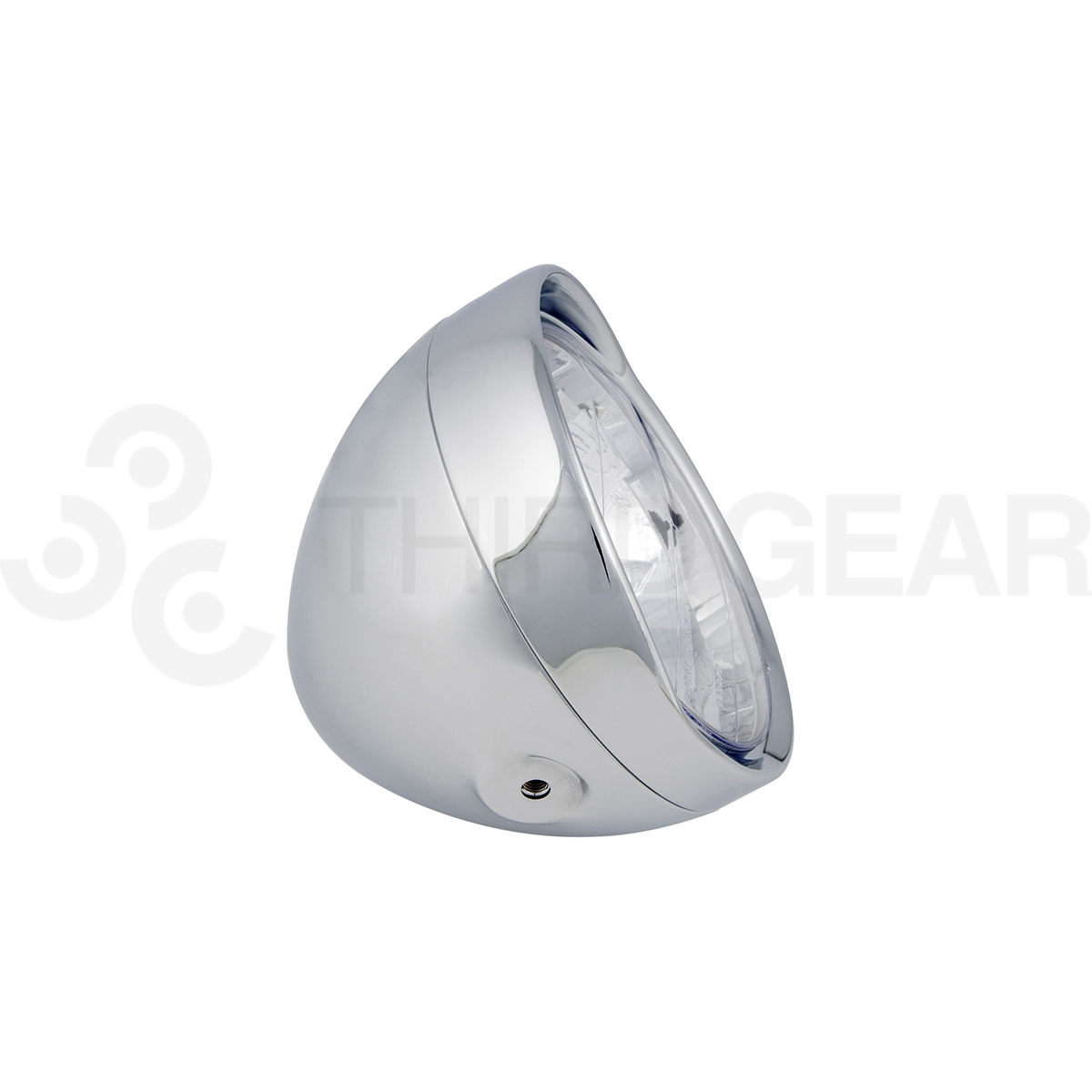

- Built in visor

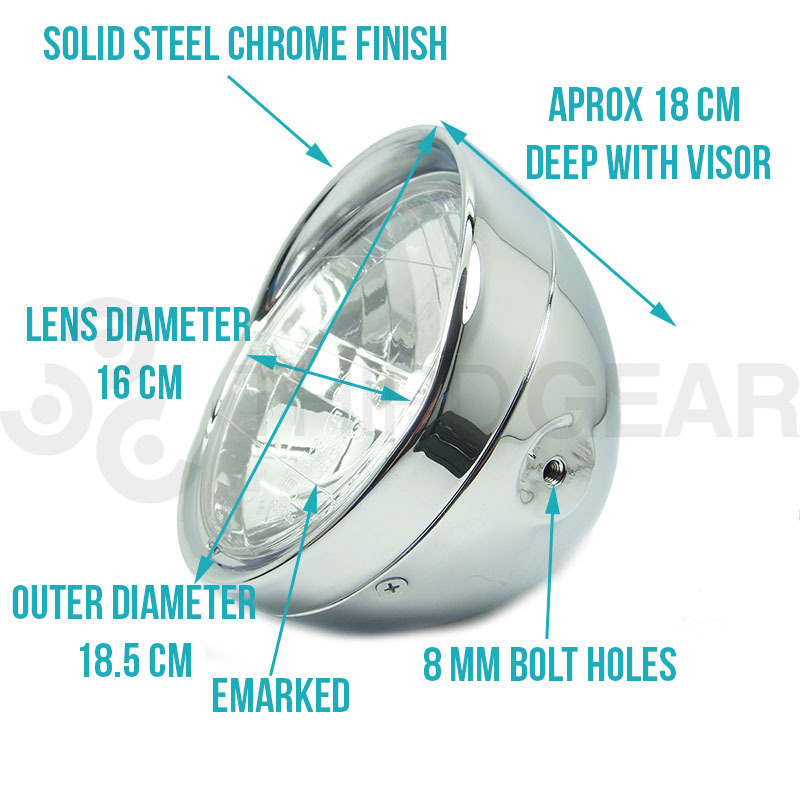

- Outside diameter of headlight: 7"

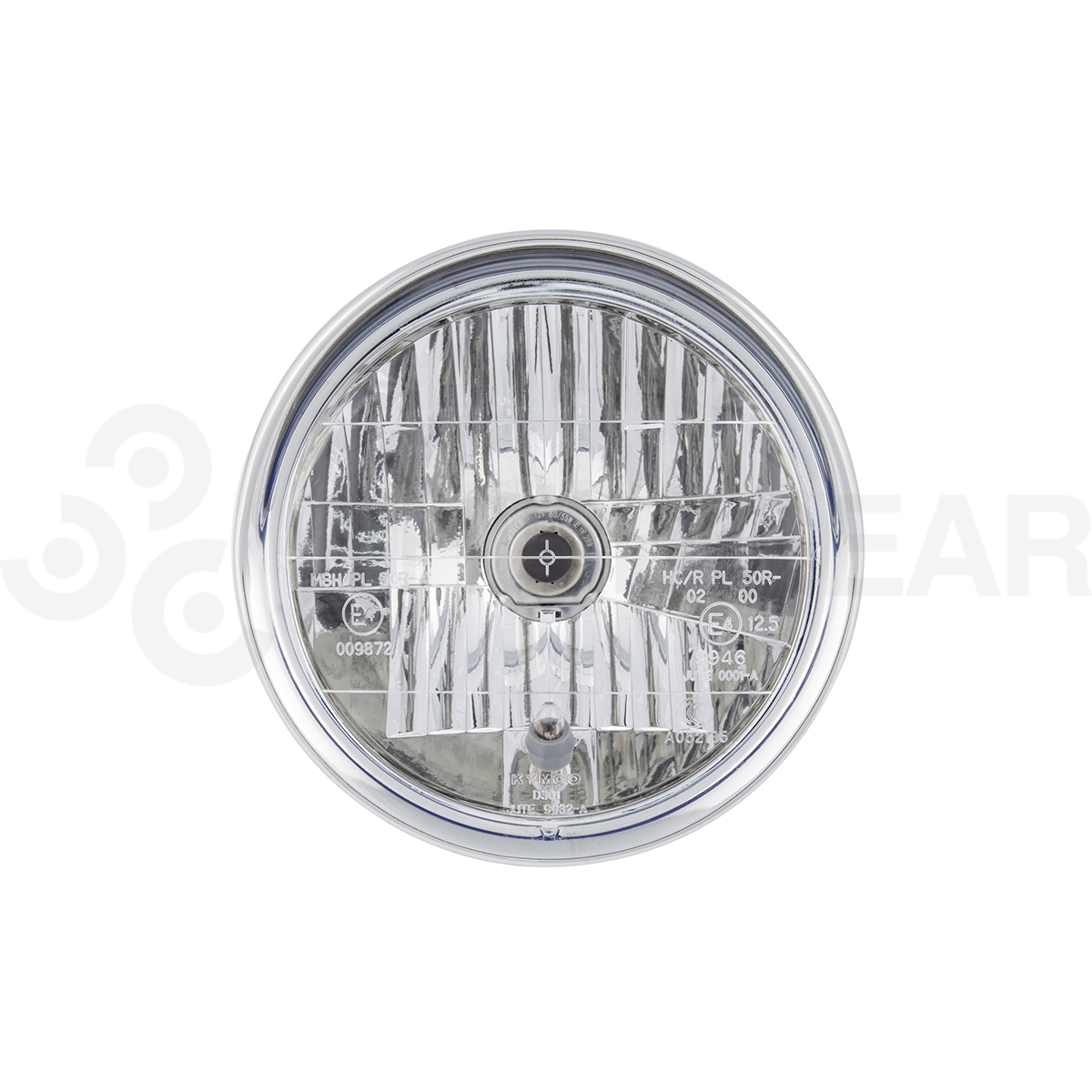

- Lens Diameter: 6 1/4"
- Headlight depth: Approx 6"

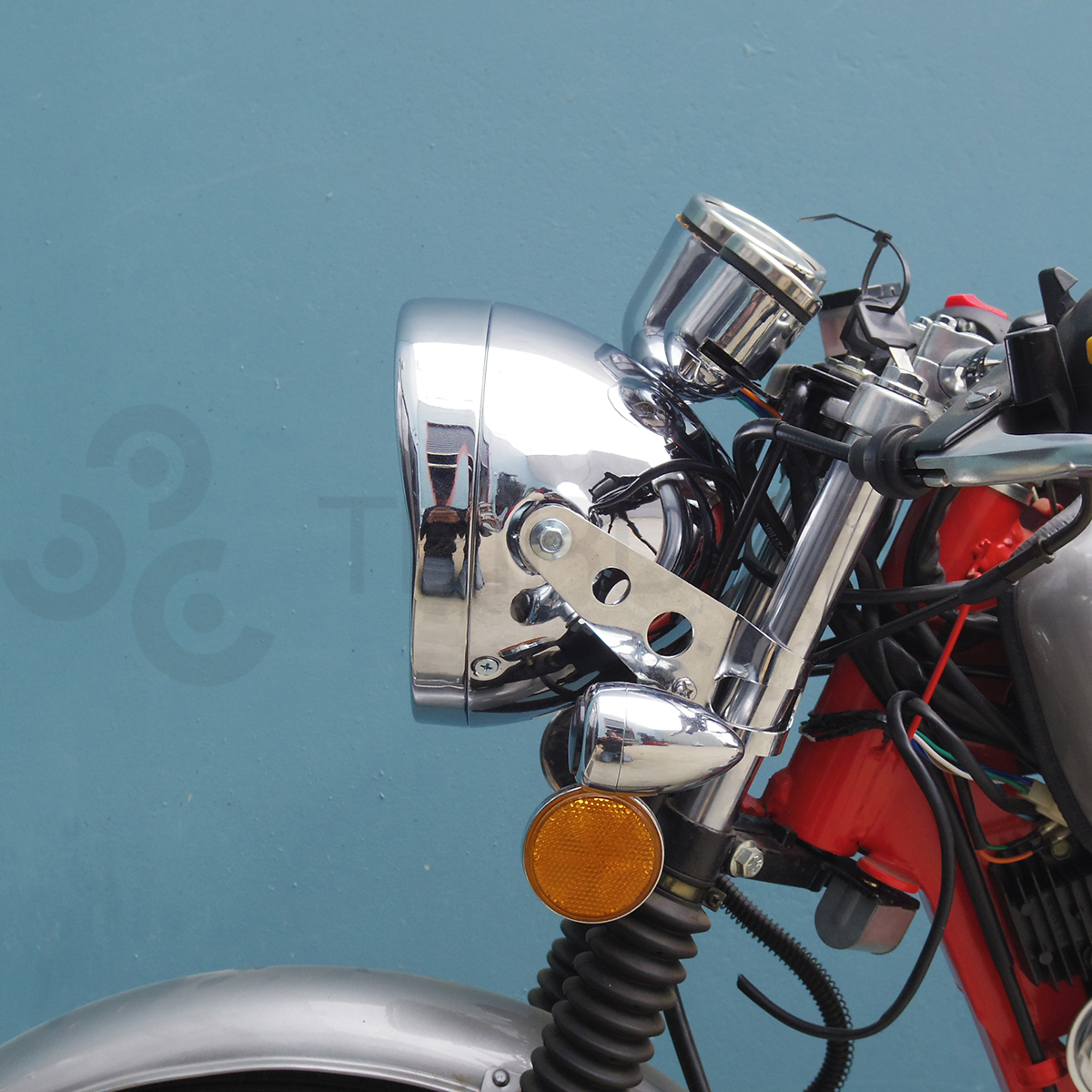

- Distance between mounting points: Approx. 6.5"
- Mounting point to rear of the housing: Approx 3.75"
- Emarked and ADR approved for Australian road use
Wiring Set Up:
- Green - negative
- Blue - high beam
- White -low beam
- Brown- positive sidelight
- Black - negative sidelight
