Sold As Single Unit
Colour Black
Primary Material ABS Plastic

Calculate Shipping

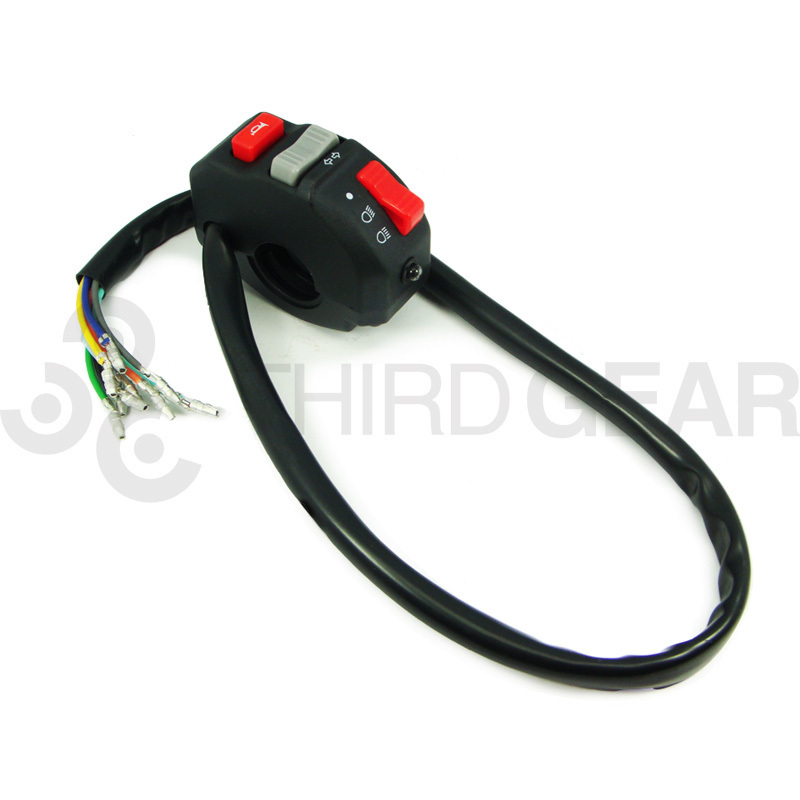

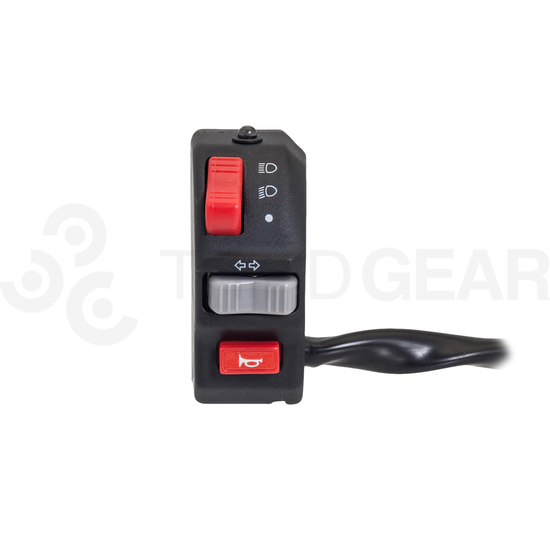

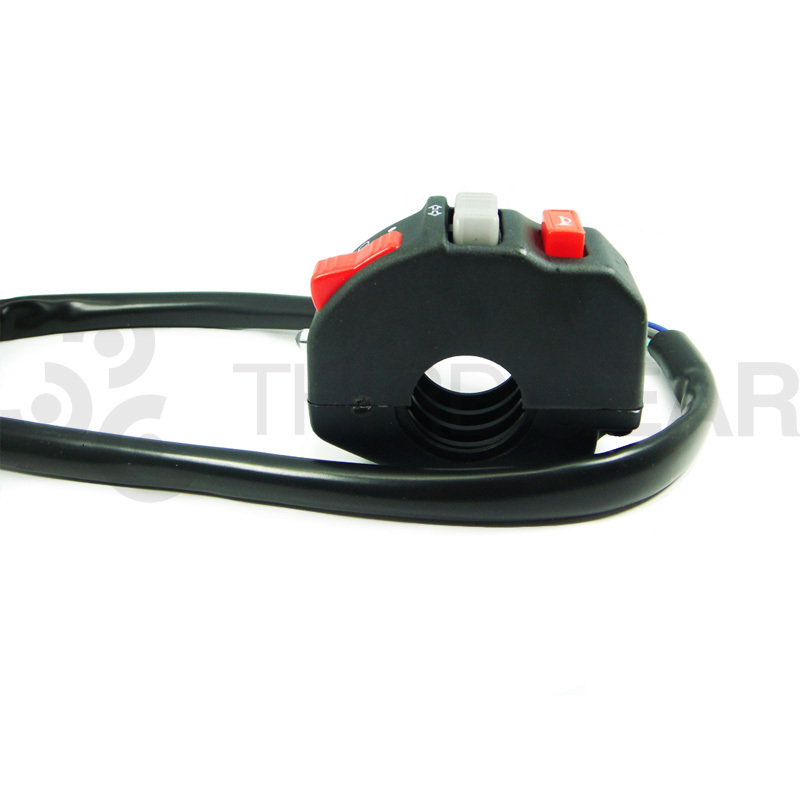

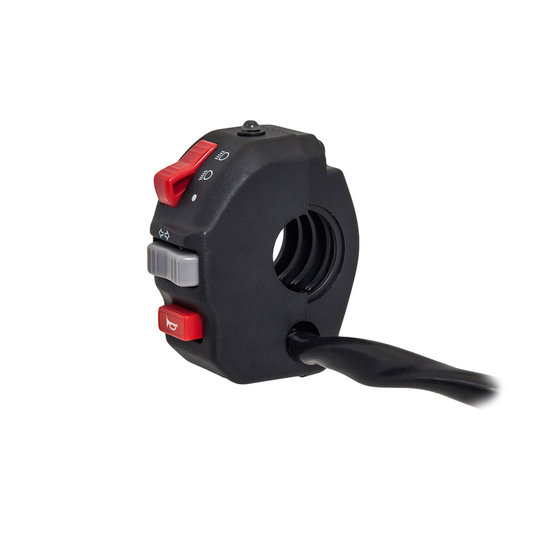

Universal motorcycle handlebar switch block. The switch assembly consists of a headlight switch (high and low beam), indicator switch and a horn switch. The switch assembly clamps directly onto a 22mm (7/8") diameter motorcycle handlebar.

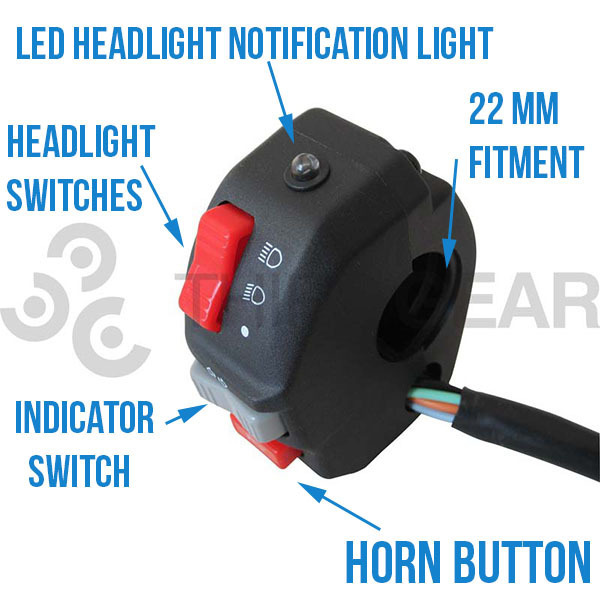

Features:

  • Quality Universal Switch
  • Headlight Switch - High & Low Beam
  • Indicators / Turn Signal Switch
  • Horn Switch
  • Fits 7/8 (22mm) Handlebars
  • 30mm width
  • Bullet Style Wire Connectors

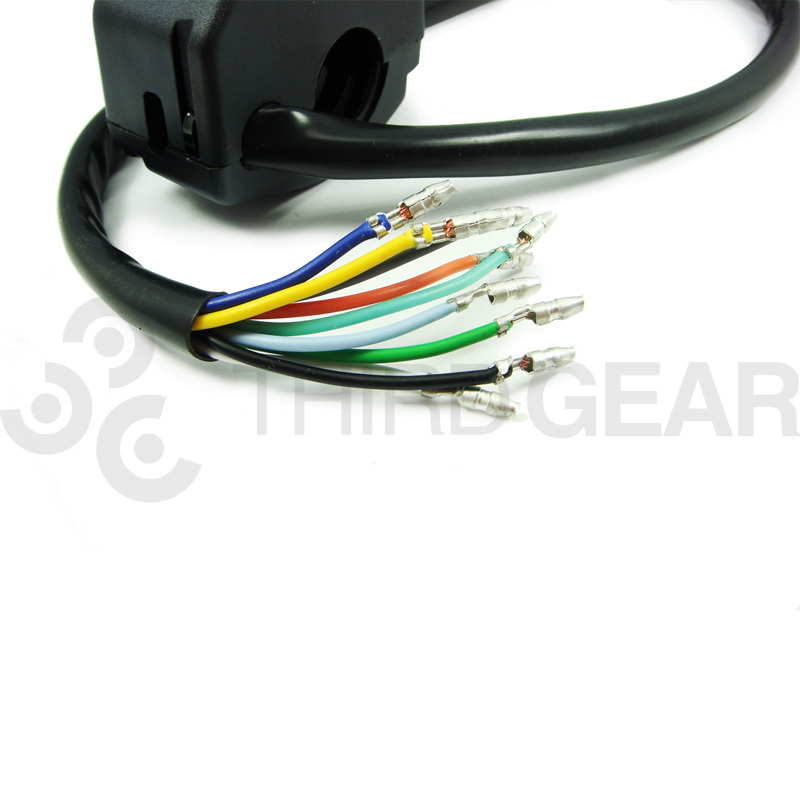

Wiring:

  1. Yellow: Head light (main wire)
  2. White: Low beam
  3. Blue: High beam
  4. Green: LED
  5. Grey: Indicator (main wire)
  6. Sky blue: Indicator (right)
  7. Orange: Indicator(left)
  8. Pale green: Horn
  9. Black: Horn

(HBARSWTCH01)

SKU HBARSWTCH01
Brand Third Gear
Shipping Weight 0.1300kg
Shipping Width 0.110m
Shipping Height 0.050m
Shipping Length 0.140m
