$24.00
In Stock
CNC machined billet aluminium
Fits 22mm (7/8") or 25.4mm (1") handlebars
12 Month Warranty

More info.

Make 4 payments of $6.00 over 8 weeks and get it now!



Voltage 12V DC
Sold As Single Unit
Colour Black
Primary Material Metal - Aluminium

Calculate Shipping

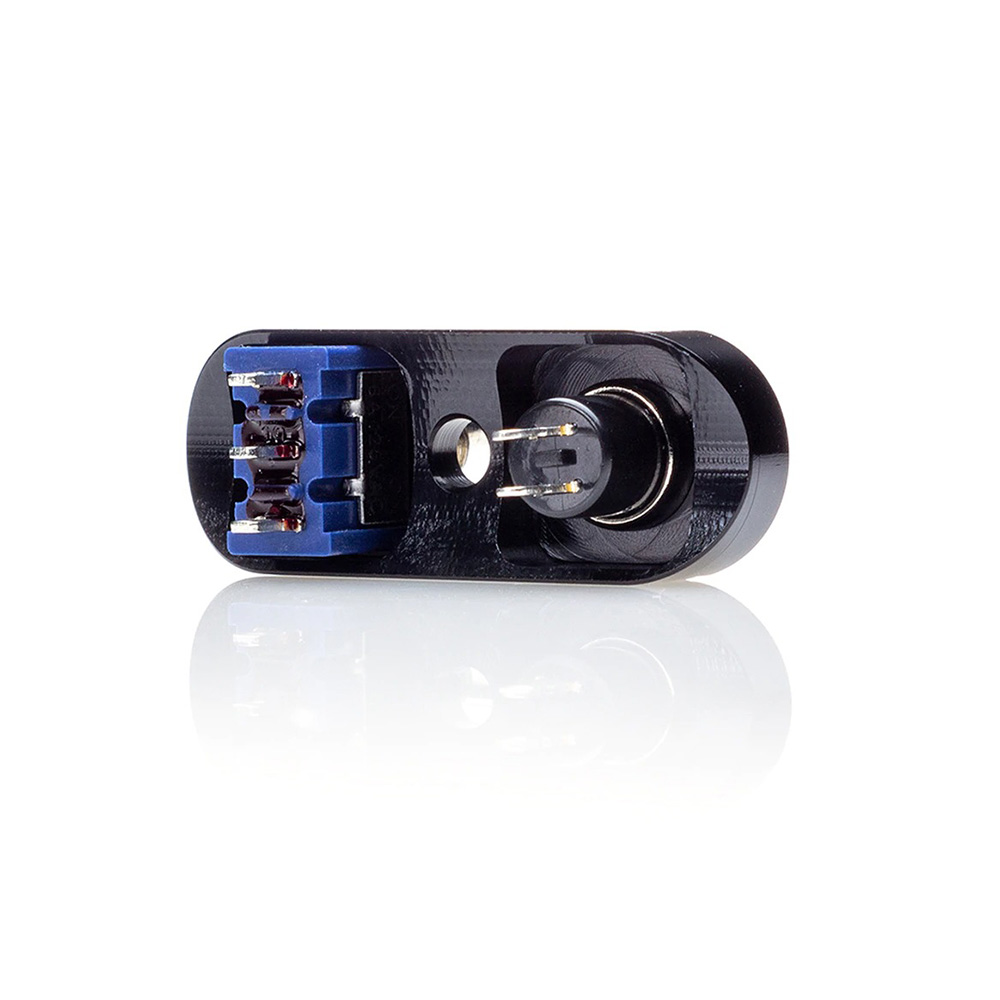

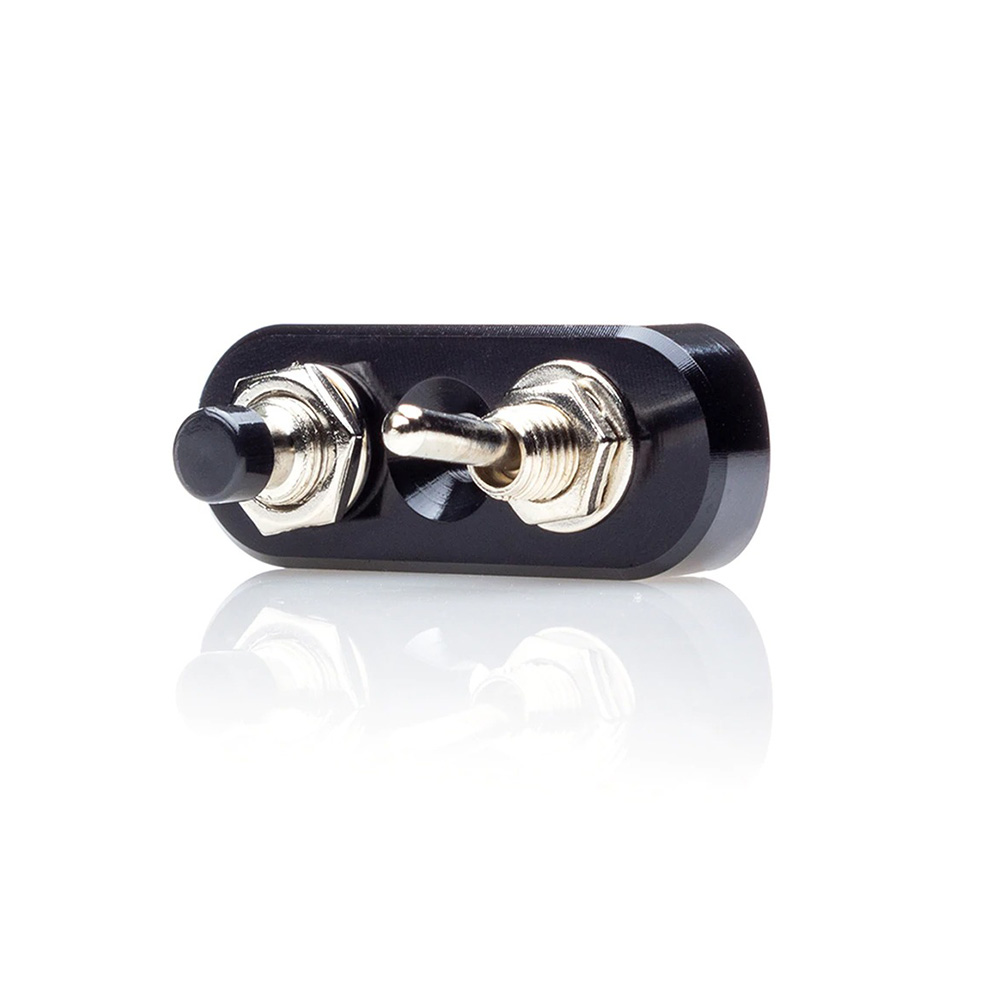

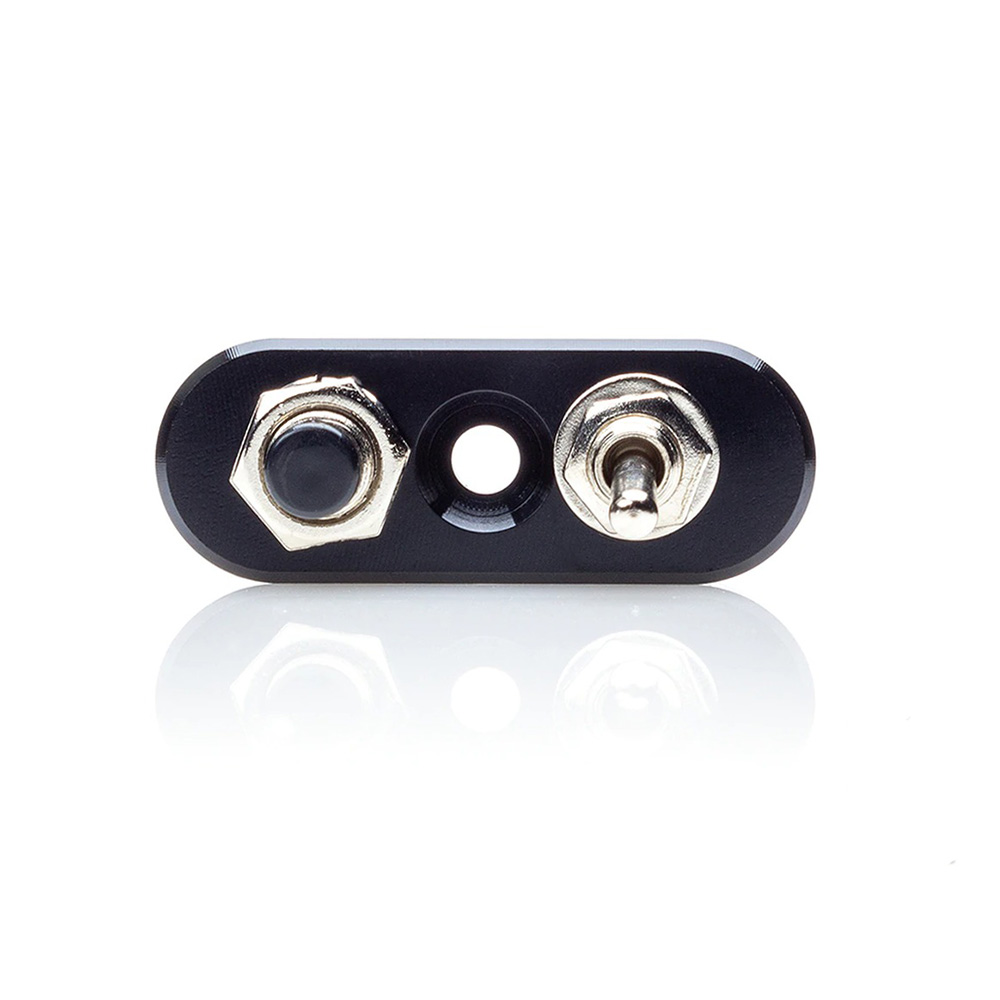

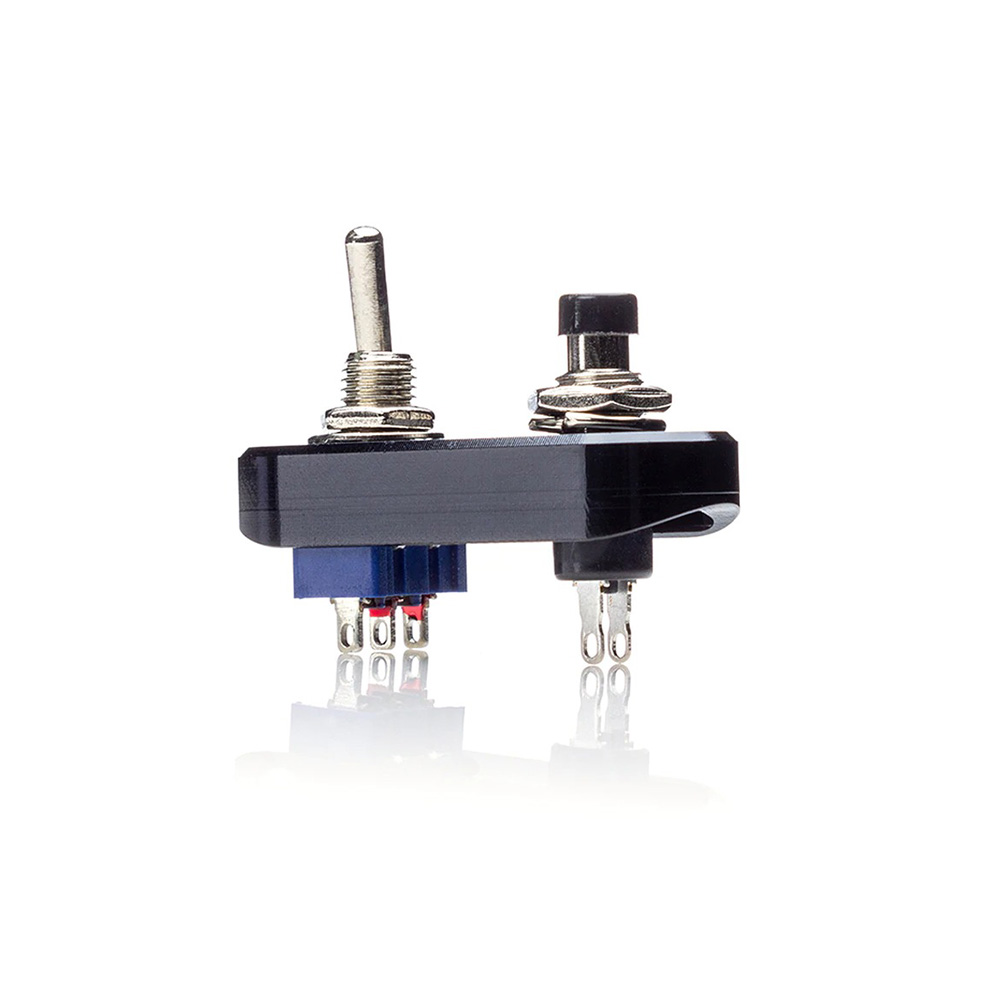

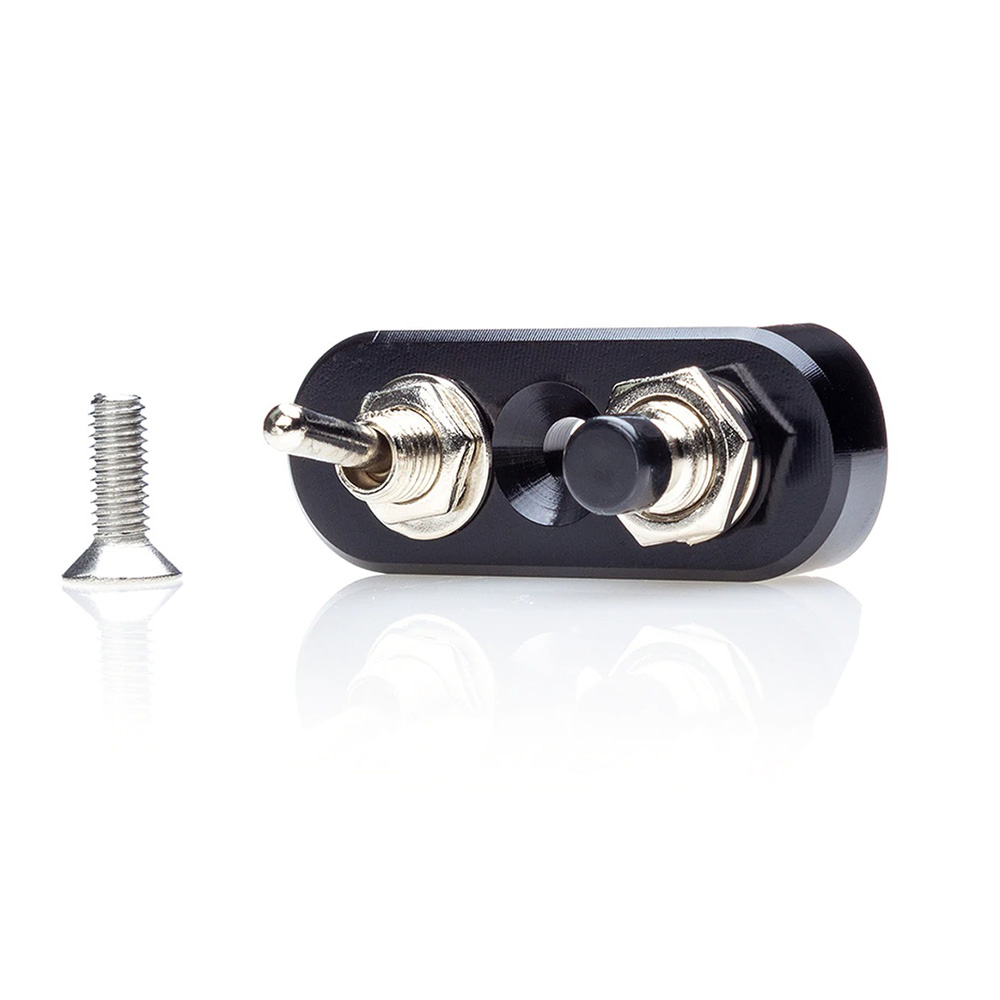

Low profile switch assembly machined from billet aluminum. Great for that uncluttered look. Eliminate the need for your stock switch blocks. These mini switches have a contoured base designed to sit flush on 7/8" or 1" handlebars.

Installation requires the drilling of 2 holes - a 15mm diameter hole for the toggle switch, and a 9mm hole for the push button switch.

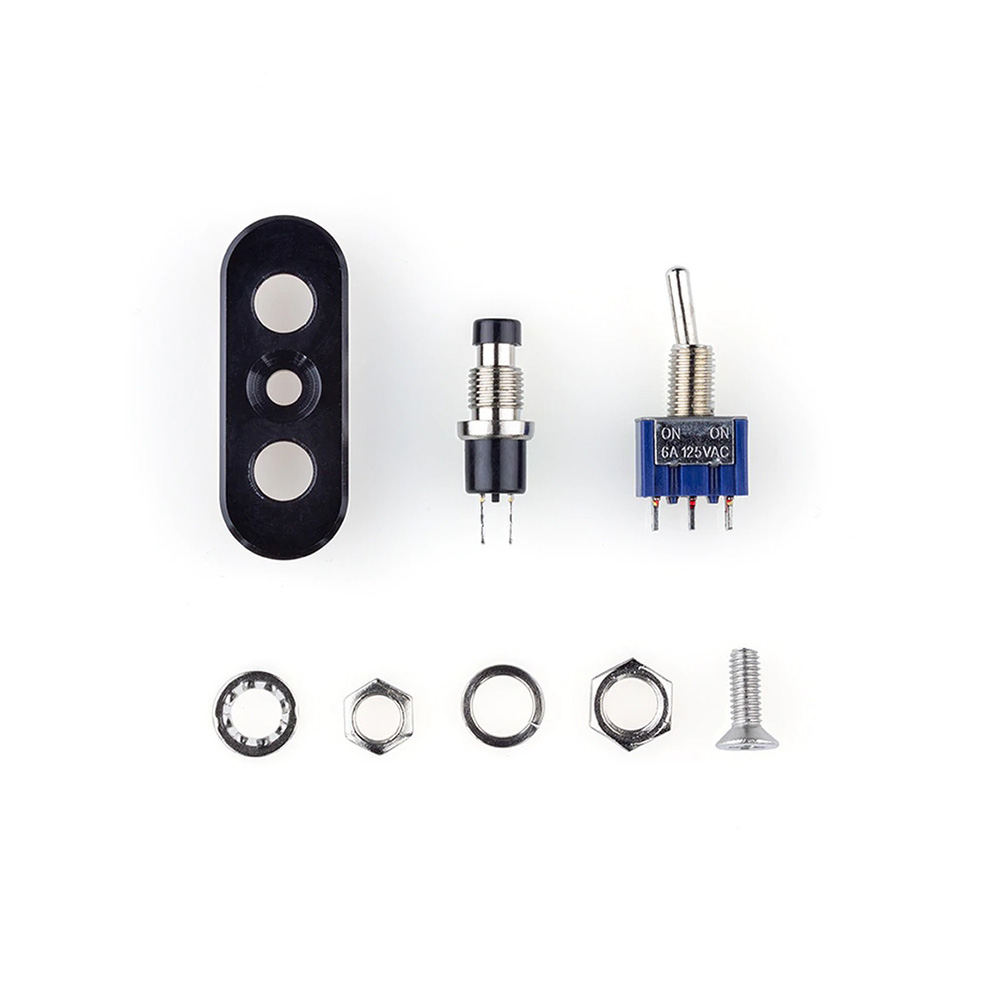

Note: a 3.3mm hole needs to be drilled and tapped with an M4 tap to create threads for the supplied M4 screw which fastens the switch to the bar. All the associated wiring can be routed through the handlebar to an exit point of your choice.

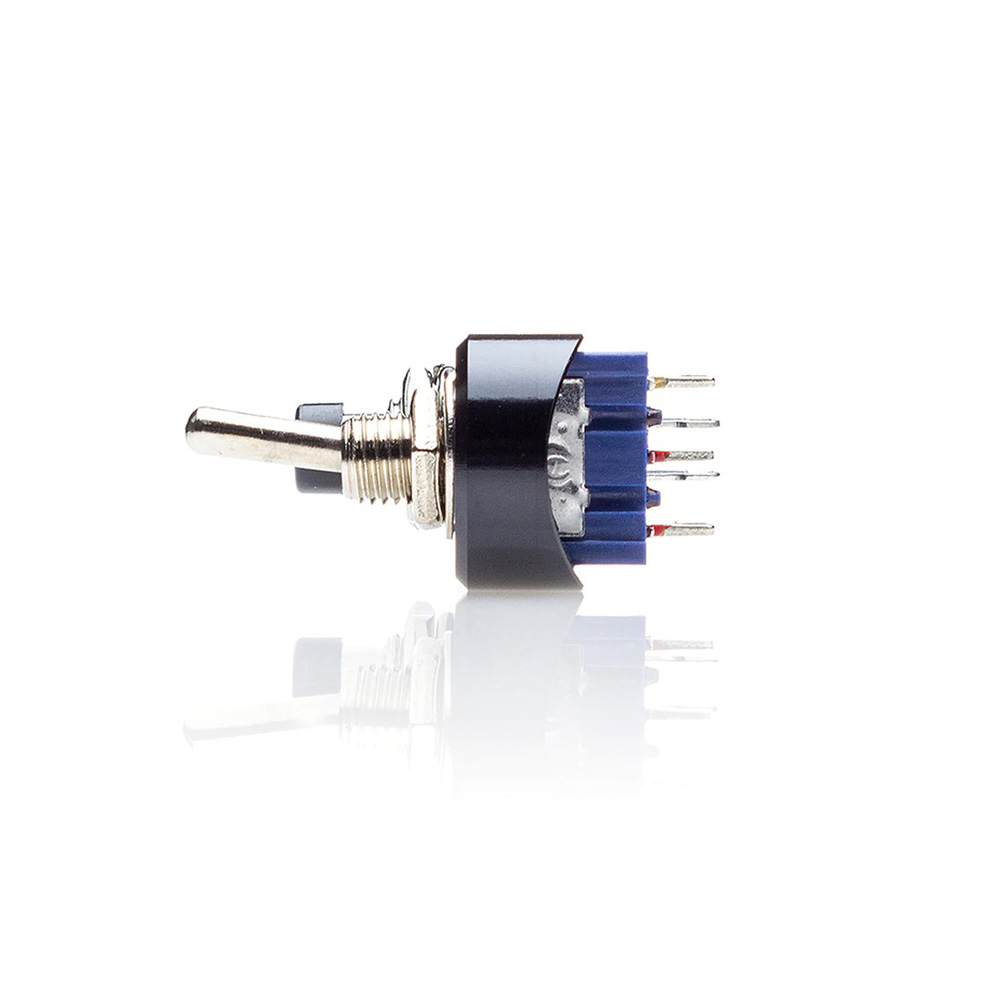

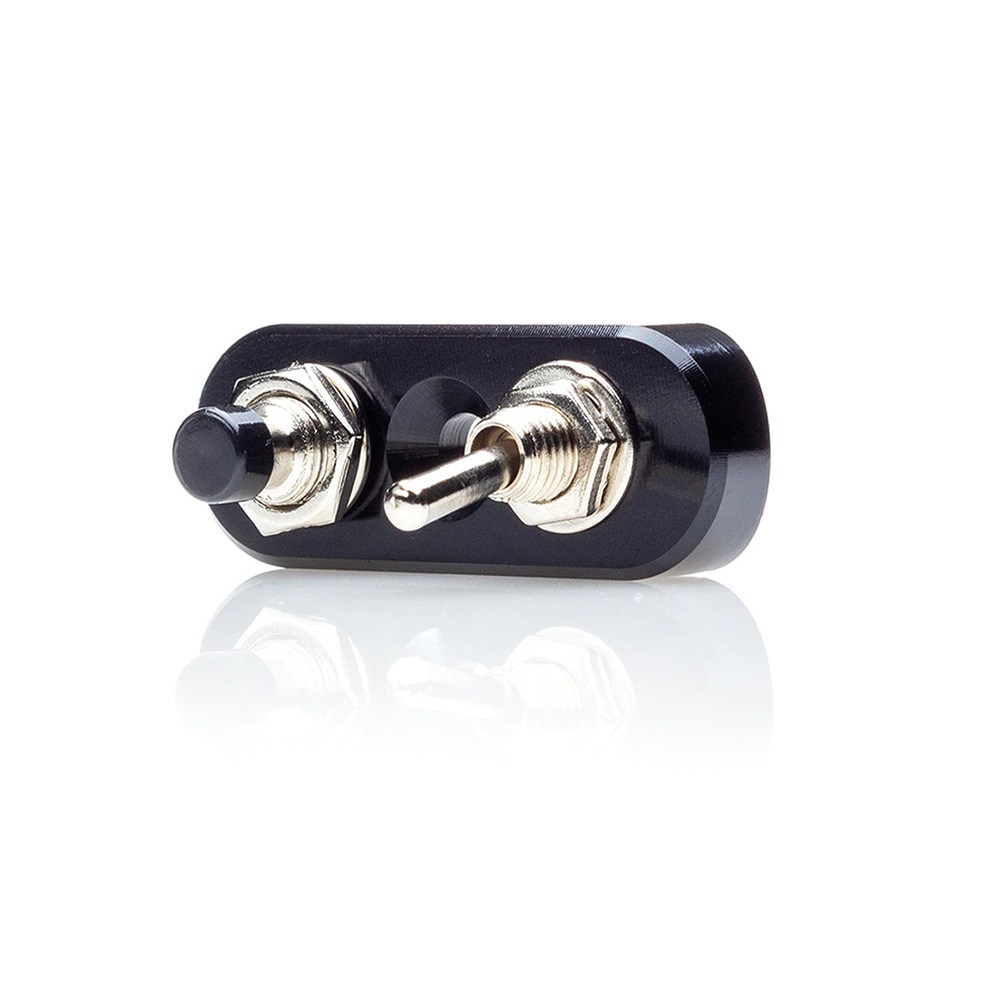

The button is a "push-on" momentary type (active only whilst pressing). The toggle is an "on/off" type. The toggle can be rotated in the base so as to provide a left-right or up-down operation.

The push-button switch can handle approx 4 amps. The toggle switch can handle approx 6 amps. If you want to run higher loads than this, you will need to run them via a relay.

Features:

  • 12 Volt
  • CNC machined billet aluminium
  • Functions:
    • Momentary push button switch
    • On/off toggle switch
  • Fits 22mm (7/8") or 25.4mm (1") handlebars

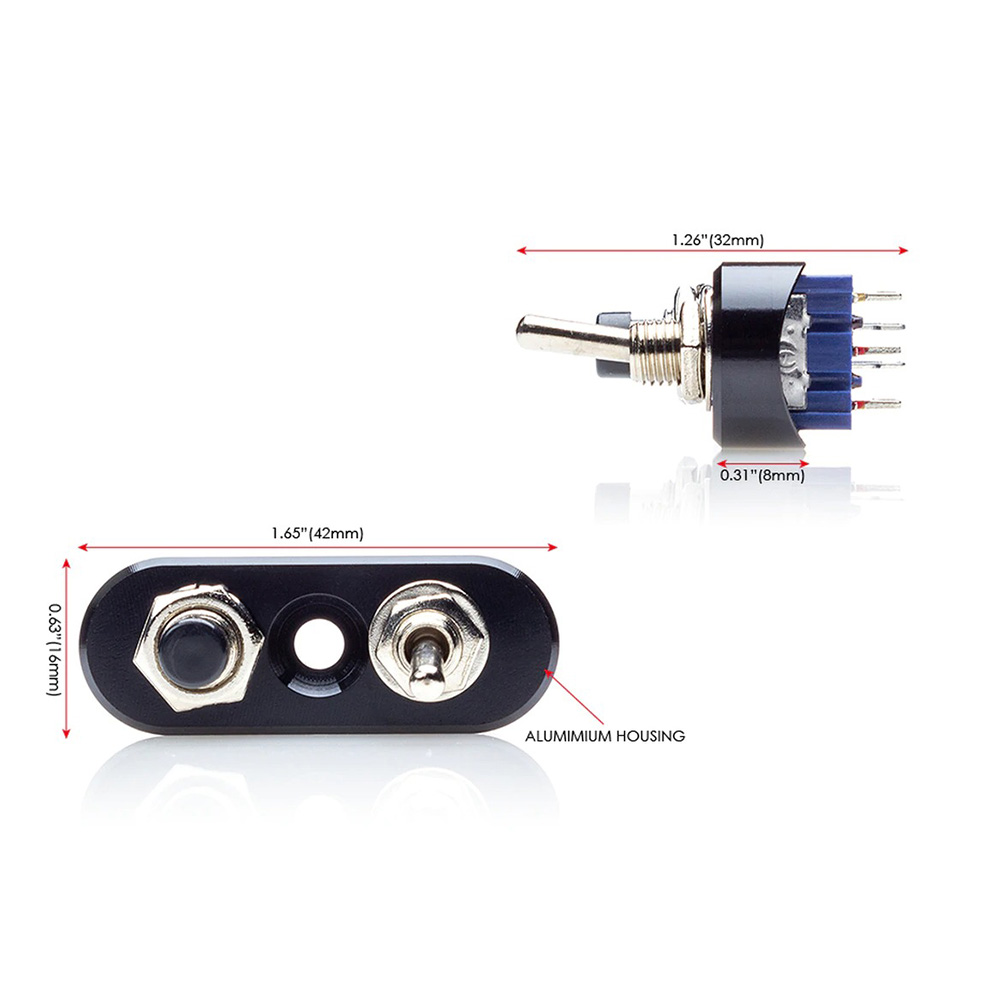

  • Dimensions: Please refer to images

(LOWSWITCH11205)

SKU LOWSWITCH11205
Barcode # 9356398016231
Brand Max Inc.
Shipping Weight 0.2000kg
