$34.00
In Stock
110 piece kit to suit Japanese offroad bikes
Fits all full size sport and utility Japanese offroad bikes
Proudly Shipped from Melbourne

More info.

Make 4 payments of $8.50 over 8 weeks and get it now!



Sold As Complete Set

Calculate Shipping

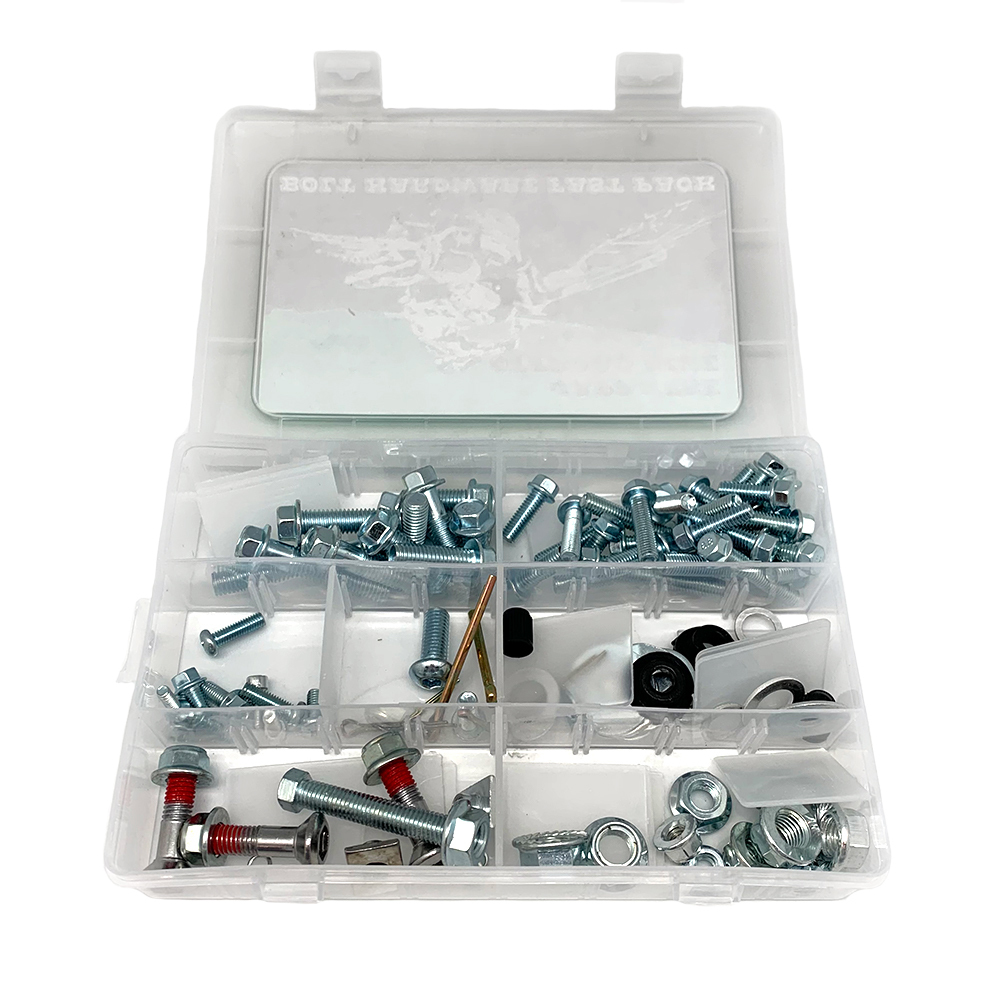

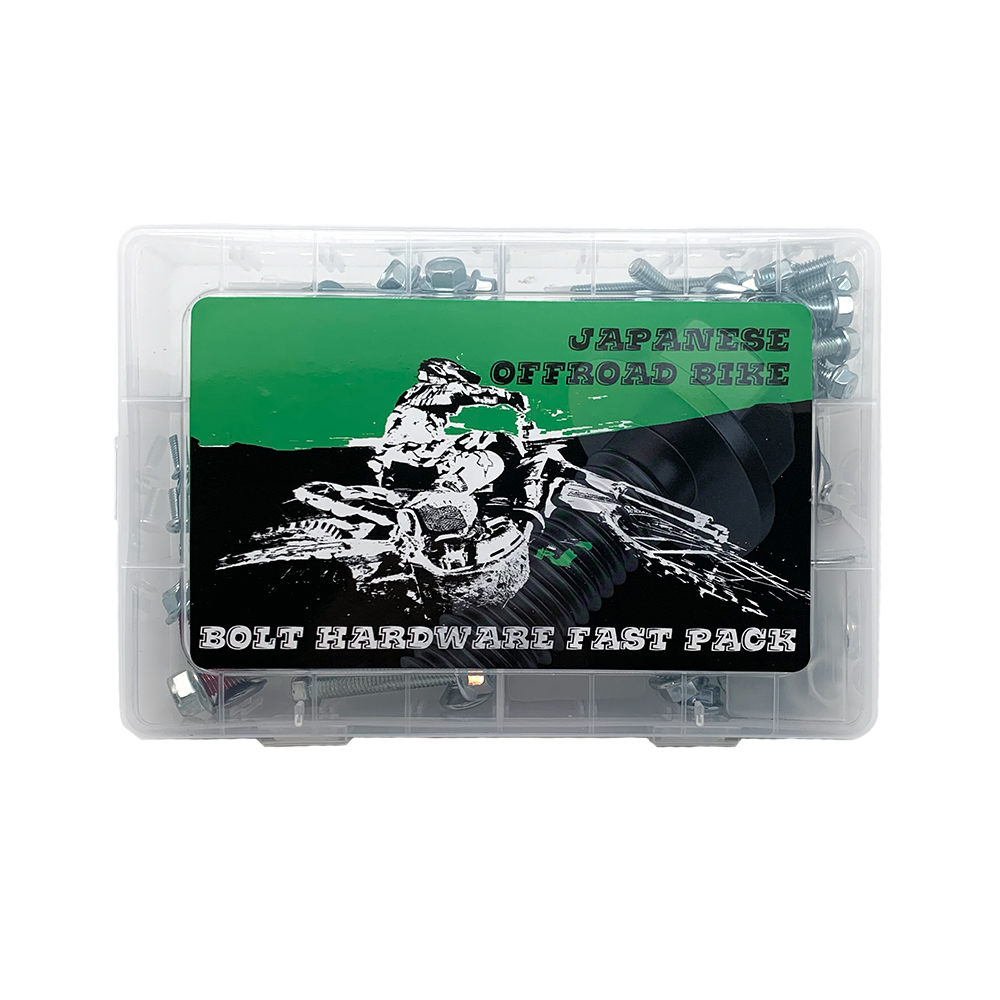

Japanese offroad bike fastener kit with 110 pieces of factory size hardware, rivets and lug nuts. Fits all Japanese manufacturer offroad bikes including Honda, Yamaha, Kawasaki & Suzuki.

Features:

  • 110 piece kit to suit Japanese offroad bikes
  • Complete in plastic carrier case

Contents:

  • Flange Hex Bolt/M8
    • M8*45  hex 10mm
    • M8*40  hex 10mm
    • M8*35  hex 10mm x 2
    • M8*30  hex 10mm x 2
    • M8*25  hex 10mm x 2
    • M8*20  hex 10mm x 2
    • M8*16  hex 10mm
  • Flange Hex Bolt/M6
    • M6*45 hex 8mm x 2
    • M6*40 hex 8mm x 2
    • M6*35 hex 8mm x 2
    • M6*30 hex 8mm x 2
    • M6*25 hex 8mm x 4
    • M6*20 hex 8mm x 4
    • M6*18 hex 8mm x 4
    • M6*16 hex 8mm x 4
    • M6*14 hex 8mm x 2
    • M6*12 hex 8mm x 2
    • M6*10 hex 8mm x 2
  • Flange Hex Bolt/M5
    • M5*12 hex 8mm x 2
  • Phillips Pan Screw/GB818
    • M5*10 x 2
    • M5*15 x 2
  • Carb Bowl Screw/GB70
    • M4*12 x 2
  • Phillips Flush Mount Screw
    • M4*12 x 2
  • Button Head Bolt/ISO7380
    • M8*20
    • M6*16
  • Sporcket Bolt M8*25 x 3
  • Locking Sprocket Nut M8 x 3
  • Chain Adjuster Bolt M8*50 hex 10mm
  • Chain Adjuster Nut M8
  • M10 Fuji Nut/ 1.25 pitch
    • M10 x 2
  • M8 Fuji Nut / 1.00 pitch
    • M8 x 2
    • M6 x 2
  • Flange Hex Nut/GB6177
    • M10 x 2
    • M8 x 2
    • M6 x 2
  • T Nut M6 x 2
  • Split Washer M4 x 4
  • Flat Washer/GB97
    • 8*17*1.45 x 2
    • 6*12*1.45 x 2
  • Fender Washer/GB96-85
    • M6*25*1.45 x 2
    • M6*22*1.45 x 2
    • M6*20*1.45 x 3
    • M6*16*1.45 x 2
  • Drain Plug Washer
    • M12*20 x 2
    • M10*18  x 2
    • M10*14.5(banjo) x 2
    • M8*15  x 2
  • Cotter Pin/GB91
    • 3.2*40 x 2
    • 2.5*25 x 2
    • 2.0*20 x 2
  • Aluminum Rim-Lock Spacer M8
  • Aluminum Collar Washer M6 x 2
  • Black Plastic Valve Cap x 2
  • Black Valve Stem Grommet x 2
  • Brake Stud M8*25

(BK5004FP)

SKU BK5004FP
Barcode # 9356398014916
Brand Third Gear
Shipping Weight 0.7500kg
