$25.00
In Stock
Suitable for CR125 and CR250 2000-2007 and CRF450R 2002-2004

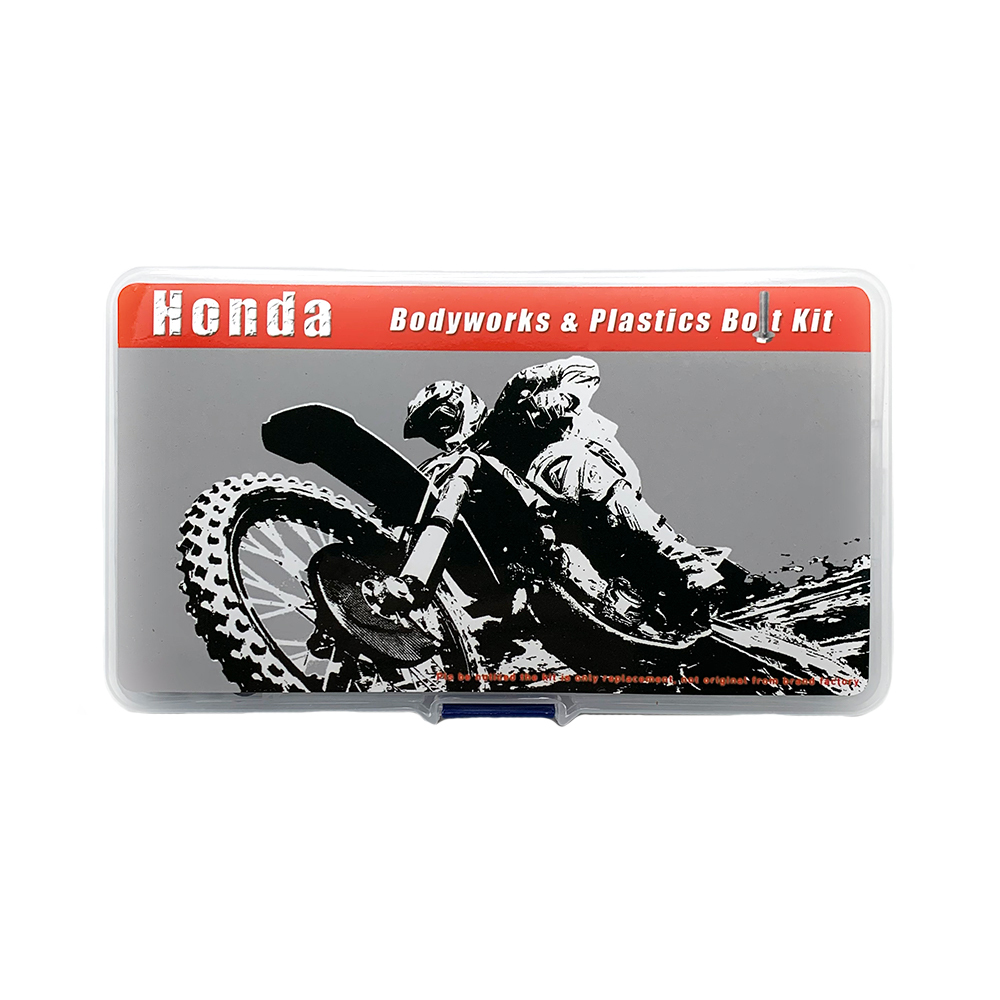

Complete in plastic carrier case
Proudly Shipped from Melbourne

More info.

Make 4 payments of $6.25 over 8 weeks and get it now!



Sold As Complete Set

Calculate Shipping

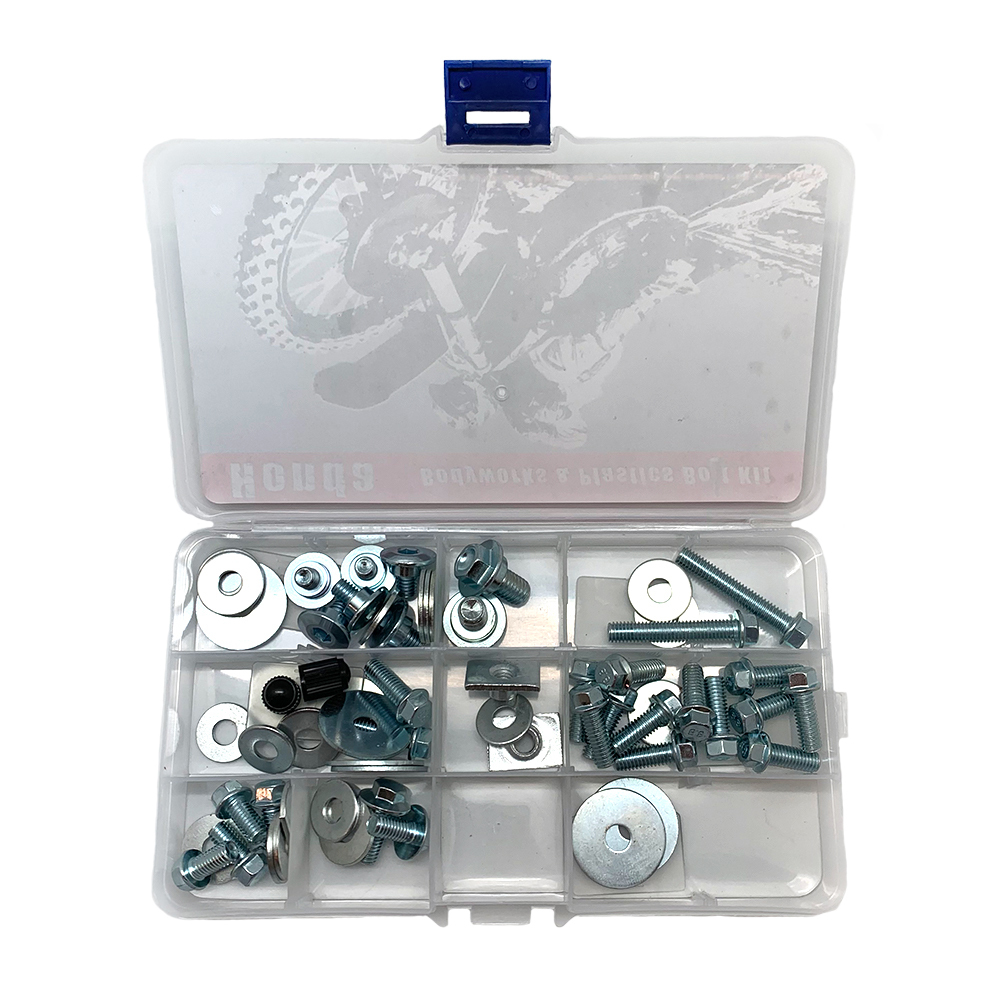

60 piece Honda factory size body hardware bolt kit. Suitable for CR125 and CR250 2000-2007 models and CRF450R 2002-2004 models.

Features:

  • Bolt kit for CR125/250 '00-'07 and CRF450R '02-'04
  • Complete in plastic carrier case

Contents:

  • Shoulder Fork Guard Bolt M6*12 x 6
  • Radiator Shroud Bolt M5*12
  • Sub-Frame Bolt M10*24
  • Seat Bolt
    • M8*16 x 2
    • M8*22
  • Rotor Bolt M6
  • T-nut M6 x 2
  • Flange Hex Bolt/M8
    • M8*45  hex 10mm
    • M8*40  hex 10mm
    • M8*35  hex 10mm
    • M8*30  hex 10mm
    • M8*25  hex 10mm
    • M8*20  hex 10mm
    • M8*16  hex 10mm
  • Flange Hex Bolt/M6
    • M6*45 hex 8mm
    • M6*40 hex 8mm
  • Tank Bolt
    • M6*35 hex 8mm x 2
    • M6*30 hex 8mm
    • M6*25 hex 8mm
    • M6*20 hex 8mm
    • M6*18 hex 8mm x 2
    • M6*16 hex 8mm x 12
    • M6*12 hex 8mm x 4
    • M6*10 hex 8mm
  • Flange Hex Bolt/M5
    • M5*12 hex 8mm
  • Number Plate Bolt
    • M6*12
    • M6*16
  • Phillips Pan Screw/GB818
    • M5*10
    • M6*22
  • Phillips Flush Mount Screw M4*12
  • Button Head Bolt/7380/black M8*25
  • Flush Mount Bolt/ DIN7991 M8*45
  • Allen Head Bolt/GB70 /black M6*25
  • Sprocket Bolt M8*25
  • Locking Sprocket Nut M8
  • Chain Adjuster Bolt M8*50 hex 10mm
  • Chain Adjuster Nut M8
  • M10 Fuji Nut/ 1.25 pitch
    • M10 hex 14mm
    • M8 hex 12mm
  • M6 Fuji Nut / 1.00 pitch M6 hex 10mm
  • Flange Nut
    • M8
    • M6
  • Locking Axel Nut
    • M25
    • M20
  • Flat Washer M8*17
  • Fender Washer
    • M8*25
    • M6*25 x 6
    • M6*20 x 4
    • M6*18 x 14
    • M6*16 x 4
  • "Banjo Bolt" Aluminum Compression Washer M10
  • Aluminum Compression Washer M8*15
  • Copper Compression Washer  M6*11
  • O-ring #23-015
  • Large Aluminum Collar Washer M6
  • Aluminum Collar Washer M6
  • Aluminum Fender Washer M6
  • Aluminum Rim-Lock Spacer M8
  • Black Plastic Valve Cap
  • Black Valve Stem Grommet
  • Metal Screwdriver Valve Cap
  • Cotter Pin
    • 2.5*25
    • 2.5*15
    • 2.0*15
    • 2.0*12

(BK5070)

SKU BK5070
Barcode # 9356398014817
Brand Third Gear
Shipping Weight 0.3500kg
